Short-circuit proof

E3016

EI 30/15,5

Short-circuit proof

2.4 VA - 40ºC/B

2.0 VA - 70ºC/B

Logo CE

Acording regulations:

EN61558 EN60590 EN60472 UL506 UL1585

Simple primary(V):

230 / 115

Dual secondary(V):

2x( 4.5 / 6.0 / 7.5 / 9.0 / 12.0 / 15.0 / 18.0 / 24.0 )

Center tapped secondary (V):

4.5 / 6.0 / 7.5 / 9.0 / 12.0 / 15.0 / 18.0 / 24.0

Vo/Vn:

1.7 (Vo-no load voltage, Vn-load voltage)

 E3016

Weight/unit:

95 gr

> Simple secondary

> Dual secondary

> Center tapped secondary

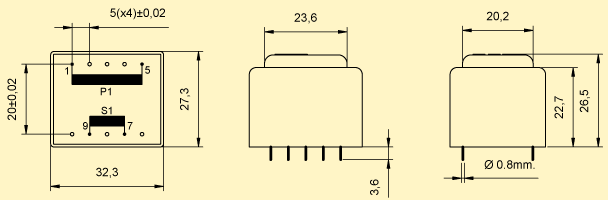

Simple secondary

E3016
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
E3016014 2.4 VA 40/B 230 V - 4.5 V - 533.0 mA - 7.6 V
E3016000 2.4 VA 40/B 230 V - 6.0 V - 400.0 mA - 10.2 V
E3016002 2.4 VA 40/B 230 V - 7.5 V - 320.0 mA - 12.7 V
E3016004 2.4 VA 40/B 230 V - 9.0 V - 267.0 mA - 15.3 V
E3016006 2.4 VA 40/B 230 V - 12.0 V - 200.0 mA - 20.4 V
E3016008 2.4 VA 40/B 230 V - 15.0 V - 160.0 mA - 25.5 V
E3016010 2.4 VA 40/B 230 V - 18.0 V - 133.0 mA - 30.6 V
E3016012 2.4 VA 40/B 230 V - 24.0 V - 100.0 mA - 40.8 V
E3016064 2.0 VA 70/B 230 V - 4.5 V - 444.0 mA - 7.6 V
E3016050 2.0 VA 70/B 230 V - 6.0 V - 333.0 mA - 10.2 V
E3016052 2.0 VA 70/B 230 V - 7.5 V - 267.0 mA - 12.7 V
E3016054 2.0 VA 70/B 230 V - 9.0 V - 222.0 mA - 15.3 V
E3016056 2.0 VA 70/B 230 V - 12.0 V - 167.0 mA - 20.4 V
E3016058 2.0 VA 70/B 230 V - 15.0 V - 133.0 mA - 25.5 V
E3016060 2.0 VA 70/B 230 V - 18.0 V - 111.0 mA - 30.6 V
E3016062 2.0 VA 70/B 230 V - 24.0 V - 83.0 mA - 40.8 V
E3016114 2.4 VA 40/B 115 V - 4.5 V - 533.0 mA - 7.6 V
E3016100 2.4 VA 40/B 115 V - 6.0 V - 400.0 mA - 10.2 V
E3016102 2.4 VA 40/B 115 V - 7.5 V - 320.0 mA - 12.7 V
E3016104 2.4 VA 40/B 115 V - 9.0 V - 267.0 mA - 15.3 V
E3016106 2.4 VA 40/B 115 V - 12.0 V - 200.0 mA - 20.4 V
E3016108 2.4 VA 40/B 115 V - 15.0 V - 160.0 mA - 25.5 V
E3016110 2.4 VA 40/B 115 V - 18.0 V - 133.0 mA - 30.6 V
E3016112 2.4 VA 40/B 115 V - 24.0 V - 100.0 mA - 40.8 V
E3016164 2.0 VA 70/B 115 V - 4.5 V - 444.0 mA - 7.6 V
E3016150 2.0 VA 70/B 115 V - 6.0 V - 333.0 mA - 10.2 V
E3016152 2.0 VA 70/B 115 V - 7.5 V - 267.0 mA - 12.7 V
E3016154 2.0 VA 70/B 115 V - 9.0 V - 222.0 mA - 15.3 V
E3016156 2.0 VA 70/B 115 V - 12.0 V - 167.0 mA - 20.4 V
E3016158 2.0 VA 70/B 115 V - 15.0 V - 133.0 mA - 25.5 V
E3016160 2.0 VA 70/B 115 V - 18.0 V - 111.0 mA - 30.6 V
E3016162 2.0 VA 70/B 115 V - 24.0 V - 83.0 mA - 40.8 V

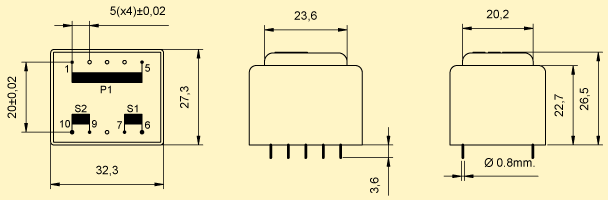

Dual secondary

E3016
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
E3016015 2.4 VA 40/B 230 V - 4.5 V 4.5 V 267.0 mA 267.0 mA 2x7.6 V
E3016001 2.4 VA 40/B 230 V - 6.0 V 6.0 V 200.0 mA 200.0 mA 2x10.2 V
E3016003 2.4 VA 40/B 230 V - 7.5 V 7.5 V 160.0 mA 160.0 mA 2x12.7 V
E3016005 2.4 VA 40/B 230 V - 9.0 V 9.0 V 133.0 mA 133.0 mA 2x15.3 V
E3016007 2.4 VA 40/B 230 V - 12.0 V 12.0 V 100.0 mA 100.0 mA 2x20.4 V
E3016009 2.4 VA 40/B 230 V - 15.0 V 15.0 V 80.0 mA 80.0 mA 2x25.5 V
E3016011 2.4 VA 40/B 230 V - 18.0 V 18.0 V 67.0 mA 67.0 mA 2x30.6 V
E3016013 2.4 VA 40/B 230 V - 24.0 V 24.0 V 50.0 mA 50.0 mA 2x40.8 V
E3016065 2.0 VA 70/B 230 V - 4.5 V 4.5 V 222.0 mA 222.0 mA 2x7.6 V
E3016051 2.0 VA 70/B 230 V - 6.0 V 6.0 V 167.0 mA 167.0 mA 2x10.2 V
E3016053 2.0 VA 70/B 230 V - 7.5 V 7.5 V 133.0 mA 133.0 mA 2x12.7 V
E3016055 2.0 VA 70/B 230 V - 9.0 V 9.0 V 111.0 mA 111.0 mA 2x15.3 V
E3016057 2.0 VA 70/B 230 V - 12.0 V 12.0 V 83.0 mA 83.0 mA 2x20.4 V
E3016059 2.0 VA 70/B 230 V - 15.0 V 15.0 V 67.0 mA 67.0 mA 2x25.5 V
E3016061 2.0 VA 70/B 230 V - 18.0 V 18.0 V 56.0 mA 56.0 mA 2x30.6 V
E3016063 2.0 VA 70/B 230 V - 24.0 V 24.0 V 42.0 mA 42.0 mA 2x40.8 V
E3016115 2.4 VA 40/B 115 V - 4.5 V 4.5 V 267.0 mA 267.0 mA 2x7.6 V
E3016101 2.4 VA 40/B 115 V - 6.0 V 6.0 V 200.0 mA 200.0 mA 2x10.2 V
E3016103 2.4 VA 40/B 115 V - 7.5 V 7.5 V 160.0 mA 160.0 mA 2x12.7 V
E3016105 2.4 VA 40/B 115 V - 9.0 V 9.0 V 133.0 mA 133.0 mA 2x15.3 V
E3016107 2.4 VA 40/B 115 V - 12.0 V 12.0 V 100.0 mA 100.0 mA 2x20.4 V
E3016109 2.4 VA 40/B 115 V - 15.0 V 15.0 V 80.0 mA 80.0 mA 2x25.5 V
E3016111 2.4 VA 40/B 115 V - 18.0 V 18.0 V 67.0 mA 67.0 mA 2x30.6 V
E3016113 2.4 VA 40/B 115 V - 24.0 V 24.0 V 50.0 mA 50.0 mA 2x40.8 V
E3016165 2.0 VA 70/B 115 V - 4.5 V 4.5 V 222.0 mA 222.0 mA 2x7.6 V
E3016151 2.0 VA 70/B 115 V - 6.0 V 6.0 V 167.0 mA 167.0 mA 2x10.2 V
E3016153 2.0 VA 70/B 115 V - 7.5 V 7.5 V 133.0 mA 133.0 mA 2x12.7 V
E3016155 2.0 VA 70/B 115 V - 9.0 V 9.0 V 111.0 mA 111.0 mA 2x15.3 V
E3016157 2.0 VA 70/B 115 V - 12.0 V 12.0 V 83.0 mA 83.0 mA 2x20.4 V
E3016159 2.0 VA 70/B 115 V - 15.0 V 15.0 V 67.0 mA 67.0 mA 2x25.5 V
E3016161 2.0 VA 70/B 115 V - 18.0 V 18.0 V 56.0 mA 56.0 mA 2x30.6 V
E3016163 2.0 VA 70/B 115 V - 24.0 V 24.0 V 42.0 mA 42.0 mA 2x40.8 V

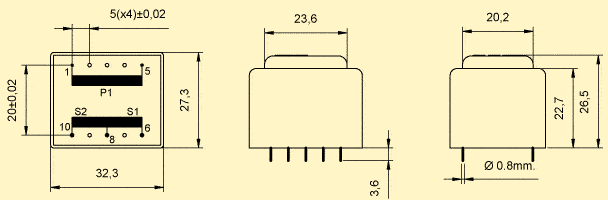

Center tapped secondary

E3016
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
{$st[i].ref} 2.4 VA 40/B 230 V - 4.5 V 4.5 V 267.0 mA 267.0 mA 2x7.6 V
{$st[i].ref} 2.4 VA 40/B 230 V - 6.0 V 6.0 V 200.0 mA 200.0 mA 2x10.2 V
{$st[i].ref} 2.4 VA 40/B 230 V - 7.5 V 7.5 V 160.0 mA 160.0 mA 2x12.7 V
{$st[i].ref} 2.4 VA 40/B 230 V - 9.0 V 9.0 V 133.0 mA 133.0 mA 2x15.3 V
{$st[i].ref} 2.4 VA 40/B 230 V - 12.0 V 12.0 V 100.0 mA 100.0 mA 2x20.4 V
{$st[i].ref} 2.4 VA 40/B 230 V - 15.0 V 15.0 V 80.0 mA 80.0 mA 2x25.5 V
{$st[i].ref} 2.4 VA 40/B 230 V - 18.0 V 18.0 V 67.0 mA 67.0 mA 2x30.6 V
{$st[i].ref} 2.4 VA 40/B 230 V - 24.0 V 24.0 V 50.0 mA 50.0 mA 2x40.8 V
{$st[i].ref} 2.0 VA 70/B 230 V - 4.5 V 4.5 V 222.0 mA 222.0 mA 2x7.6 V
{$st[i].ref} 2.0 VA 70/B 230 V - 6.0 V 6.0 V 167.0 mA 167.0 mA 2x10.2 V
{$st[i].ref} 2.0 VA 70/B 230 V - 7.5 V 7.5 V 133.0 mA 133.0 mA 2x12.7 V
{$st[i].ref} 2.0 VA 70/B 230 V - 9.0 V 9.0 V 111.0 mA 111.0 mA 2x15.3 V
{$st[i].ref} 2.0 VA 70/B 230 V - 12.0 V 12.0 V 83.0 mA 83.0 mA 2x20.4 V
{$st[i].ref} 2.0 VA 70/B 230 V - 15.0 V 15.0 V 67.0 mA 67.0 mA 2x25.5 V
{$st[i].ref} 2.0 VA 70/B 230 V - 18.0 V 18.0 V 56.0 mA 56.0 mA 2x30.6 V
{$st[i].ref} 2.0 VA 70/B 230 V - 24.0 V 24.0 V 42.0 mA 42.0 mA 2x40.8 V
{$st[i].ref} 2.4 VA 40/B 115 V - 4.5 V 4.5 V 267.0 mA 267.0 mA 2x7.6 V
{$st[i].ref} 2.4 VA 40/B 115 V - 6.0 V 6.0 V 200.0 mA 200.0 mA 2x10.2 V
{$st[i].ref} 2.4 VA 40/B 115 V - 7.5 V 7.5 V 160.0 mA 160.0 mA 2x12.7 V
{$st[i].ref} 2.4 VA 40/B 115 V - 9.0 V 9.0 V 133.0 mA 133.0 mA 2x15.3 V
{$st[i].ref} 2.4 VA 40/B 115 V - 12.0 V 12.0 V 100.0 mA 100.0 mA 2x20.4 V
{$st[i].ref} 2.4 VA 40/B 115 V - 15.0 V 15.0 V 80.0 mA 80.0 mA 2x25.5 V
{$st[i].ref} 2.4 VA 40/B 115 V - 18.0 V 18.0 V 67.0 mA 67.0 mA 2x30.6 V
{$st[i].ref} 2.4 VA 40/B 115 V - 24.0 V 24.0 V 50.0 mA 50.0 mA 2x40.8 V
{$st[i].ref} 2.0 VA 70/B 115 V - 4.5 V 4.5 V 222.0 mA 222.0 mA 2x7.6 V
{$st[i].ref} 2.0 VA 70/B 115 V - 6.0 V 6.0 V 167.0 mA 167.0 mA 2x10.2 V
{$st[i].ref} 2.0 VA 70/B 115 V - 7.5 V 7.5 V 133.0 mA 133.0 mA 2x12.7 V
{$st[i].ref} 2.0 VA 70/B 115 V - 9.0 V 9.0 V 111.0 mA 111.0 mA 2x15.3 V
{$st[i].ref} 2.0 VA 70/B 115 V - 12.0 V 12.0 V 83.0 mA 83.0 mA 2x20.4 V
{$st[i].ref} 2.0 VA 70/B 115 V - 15.0 V 15.0 V 67.0 mA 67.0 mA 2x25.5 V
{$st[i].ref} 2.0 VA 70/B 115 V - 18.0 V 18.0 V 56.0 mA 56.0 mA 2x30.6 V
{$st[i].ref} 2.0 VA 70/B 115 V - 24.0 V 24.0 V 42.0 mA 42.0 mA 2x40.8 V
