External protection

E4209

EI 42/8,5

External protection

3.2 VA - 40ºC/B

2.7 VA - 70ºC/B

Logo CE

Acording regulations:

EN61558 EN60590 EN60472 UL506 UL1585

Simple primary(V):

230 / 115

Dual secondary(V):

2x( 4.5 / 6.0 / 7.5 / 9.0 / 12.0 / 15.0 / 18.0 / 24.0 )

Center tapped secondary (V):

4.5 / 6.0 / 7.5 / 9.0 / 12.0 / 15.0 / 18.0 / 24.0

Vo/Vn:

1.3 (Vo-no load voltage, Vn-load voltage)

 E4209

Weight/unit:

120 gr

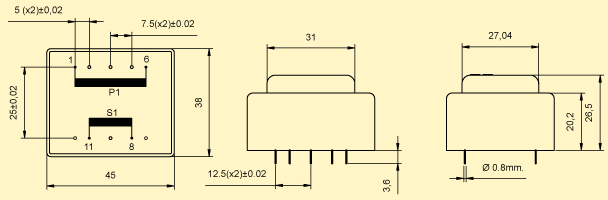

> Simple secondary

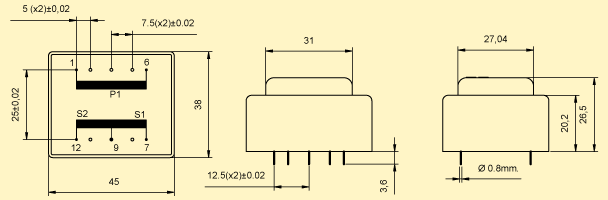

> Dual secondary

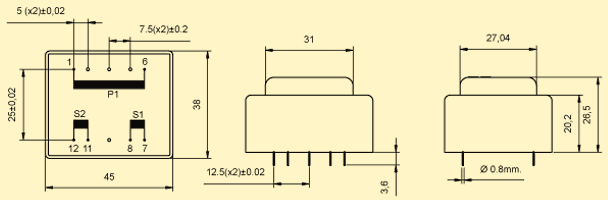

> Center tapped secondary

Simple secondary

E4209
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
E4209014 3.2 VA 40/B 230 V - 4.5 V - 711.0 mA - 5.85 V
E4209000 3.2 VA 40/B 230 V - 6.0 V - 533.0 mA - 7.8 V
E4209002 3.2 VA 40/B 230 V - 7.5 V - 427.0 mA - 9.75 V
E4209004 3.2 VA 40/B 230 V - 9.0 V - 356.0 mA - 11.7 V
E4209006 3.2 VA 40/B 230 V - 12.0 V - 267.0 mA - 15.6 V
E4209008 3.2 VA 40/B 230 V - 15.0 V - 213.0 mA - 19.5 V
E4209010 3.2 VA 40/B 230 V - 18.0 V - 178.0 mA - 23.4 V
E4209012 3.2 VA 40/B 230 V - 24.0 V - 133.0 mA - 31.2 V
E4209064 2.7 VA 70/B 230 V - 4.5 V - 600.0 mA - 5.85 V
E4209050 2.7 VA 70/B 230 V - 6.0 V - 450.0 mA - 7.8 V
E4209052 2.7 VA 70/B 230 V - 7.5 V - 360.0 mA - 9.75 V
E4209054 2.7 VA 70/B 230 V - 9.0 V - 300.0 mA - 11.7 V
E4209056 2.7 VA 70/B 230 V - 12.0 V - 225.0 mA - 15.6 V
E4209058 2.7 VA 70/B 230 V - 15.0 V - 180.0 mA - 19.5 V
E4209060 2.7 VA 70/B 230 V - 18.0 V - 150.0 mA - 23.4 V
E4209062 2.7 VA 70/B 230 V - 24.0 V - 112.0 mA - 31.2 V
E4209114 3.2 VA 40/B 115 V - 4.5 V - 711.0 mA - 5.85 V
E4209100 3.2 VA 40/B 115 V - 6.0 V - 533.0 mA - 7.8 V
E4209102 3.2 VA 40/B 115 V - 7.5 V - 427.0 mA - 9.75 V
E4209104 3.2 VA 40/B 115 V - 9.0 V - 356.0 mA - 11.7 V
E4209106 3.2 VA 40/B 115 V - 12.0 V - 267.0 mA - 15.6 V
E4209108 3.2 VA 40/B 115 V - 15.0 V - 213.0 mA - 19.5 V
E4209110 3.2 VA 40/B 115 V - 18.0 V - 178.0 mA - 23.4 V
E4209112 3.2 VA 40/B 115 V - 24.0 V - 133.0 mA - 31.2 V
E4209164 2.7 VA 70/B 115 V - 4.5 V - 600.0 mA - 5.85 V
E4209150 2.7 VA 70/B 115 V - 6.0 V - 450.0 mA - 7.8 V
E4209152 2.7 VA 70/B 115 V - 7.5 V - 360.0 mA - 9.75 V
E4209154 2.7 VA 70/B 115 V - 9.0 V - 300.0 mA - 11.7 V
E4209156 2.7 VA 70/B 115 V - 12.0 V - 225.0 mA - 15.6 V
E4209158 2.7 VA 70/B 115 V - 15.0 V - 180.0 mA - 19.5 V
E4209160 2.7 VA 70/B 115 V - 18.0 V - 150.0 mA - 23.4 V
E4209162 2.7 VA 70/B 115 V - 24.0 V - 112.0 mA - 31.2 V

Dual secondary

E4209
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
E4209015 3.2 VA 40/B 230 V - 4.5 V 4.5 V 356.0 mA 356.0 mA 2x5.85 V
E4209001 3.2 VA 40/B 230 V - 6.0 V 6.0 V 267.0 mA 267.0 mA 2x7.8 V
E4209003 3.2 VA 40/B 230 V - 7.5 V 7.5 V 213.0 mA 213.0 mA 2x9.75 V
E4209005 3.2 VA 40/B 230 V - 9.0 V 9.0 V 178.0 mA 178.0 mA 2x11.7 V
E4209007 3.2 VA 40/B 230 V - 12.0 V 12.0 V 133.0 mA 133.0 mA 2x15.6 V
E4209009 3.2 VA 40/B 230 V - 15.0 V 15.0 V 107.0 mA 107.0 mA 2x19.5 V
E4209011 3.2 VA 40/B 230 V - 18.0 V 18.0 V 89.0 mA 89.0 mA 2x23.4 V
E4209013 3.2 VA 40/B 230 V - 24.0 V 24.0 V 67.0 mA 67.0 mA 2x31.2 V
E4209065 2.7 VA 70/B 230 V - 4.5 V 4.5 V 300.0 mA 300.0 mA 2x5.85 V
E4209051 2.7 VA 70/B 230 V - 6.0 V 6.0 V 225.0 mA 225.0 mA 2x7.8 V
E4209053 2.7 VA 70/B 230 V - 7.5 V 7.5 V 180.0 mA 180.0 mA 2x9.75 V
E4209055 2.7 VA 70/B 230 V - 9.0 V 9.0 V 150.0 mA 150.0 mA 2x11.7 V
E4209057 2.7 VA 70/B 230 V - 12.0 V 12.0 V 112.0 mA 112.0 mA 2x15.6 V
E4209059 2.7 VA 70/B 230 V - 15.0 V 15.0 V 90.0 mA 90.0 mA 2x19.5 V
E4209061 2.7 VA 70/B 230 V - 18.0 V 18.0 V 75.0 mA 75.0 mA 2x23.4 V
E4209063 2.7 VA 70/B 230 V - 24.0 V 24.0 V 56.0 mA 56.0 mA 2x31.2 V
E4209115 3.2 VA 40/B 115 V - 4.5 V 4.5 V 356.0 mA 356.0 mA 2x5.85 V
E4209101 3.2 VA 40/B 115 V - 6.0 V 6.0 V 267.0 mA 267.0 mA 2x7.8 V
E4209103 3.2 VA 40/B 115 V - 7.5 V 7.5 V 213.0 mA 213.0 mA 2x9.75 V
E4209105 3.2 VA 40/B 115 V - 9.0 V 9.0 V 178.0 mA 178.0 mA 2x11.7 V
E4209107 3.2 VA 40/B 115 V - 12.0 V 12.0 V 133.0 mA 133.0 mA 2x15.6 V
E4209109 3.2 VA 40/B 115 V - 15.0 V 15.0 V 107.0 mA 107.0 mA 2x19.5 V
E4209111 3.2 VA 40/B 115 V - 18.0 V 18.0 V 89.0 mA 89.0 mA 2x23.4 V
E4209113 3.2 VA 40/B 115 V - 24.0 V 24.0 V 67.0 mA 67.0 mA 2x31.2 V
E4209165 2.7 VA 70/B 115 V - 4.5 V 4.5 V 300.0 mA 300.0 mA 2x5.85 V
E4209151 2.7 VA 70/B 115 V - 6.0 V 6.0 V 225.0 mA 225.0 mA 2x7.8 V
E4209153 2.7 VA 70/B 115 V - 7.5 V 7.5 V 180.0 mA 180.0 mA 2x9.75 V
E4209155 2.7 VA 70/B 115 V - 9.0 V 9.0 V 150.0 mA 150.0 mA 2x11.7 V
E4209157 2.7 VA 70/B 115 V - 12.0 V 12.0 V 112.0 mA 112.0 mA 2x15.6 V
E4209159 2.7 VA 70/B 115 V - 15.0 V 15.0 V 90.0 mA 90.0 mA 2x19.5 V
E4209161 2.7 VA 70/B 115 V - 18.0 V 18.0 V 75.0 mA 75.0 mA 2x23.4 V
E4209163 2.7 VA 70/B 115 V - 24.0 V 24.0 V 56.0 mA 56.0 mA 2x31.2 V

Center tapped secondary

E4209
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
{$st[i].ref} 3.2 VA 40/B 230 V - 4.5 V 4.5 V 356.0 mA 356.0 mA 2x5.85 V
{$st[i].ref} 3.2 VA 40/B 230 V - 6.0 V 6.0 V 267.0 mA 267.0 mA 2x7.8 V
{$st[i].ref} 3.2 VA 40/B 230 V - 7.5 V 7.5 V 213.0 mA 213.0 mA 2x9.75 V
{$st[i].ref} 3.2 VA 40/B 230 V - 9.0 V 9.0 V 178.0 mA 178.0 mA 2x11.7 V
{$st[i].ref} 3.2 VA 40/B 230 V - 12.0 V 12.0 V 133.0 mA 133.0 mA 2x15.6 V
{$st[i].ref} 3.2 VA 40/B 230 V - 15.0 V 15.0 V 107.0 mA 107.0 mA 2x19.5 V
{$st[i].ref} 3.2 VA 40/B 230 V - 18.0 V 18.0 V 89.0 mA 89.0 mA 2x23.4 V
{$st[i].ref} 3.2 VA 40/B 230 V - 24.0 V 24.0 V 67.0 mA 67.0 mA 2x31.2 V
{$st[i].ref} 2.7 VA 70/B 230 V - 4.5 V 4.5 V 300.0 mA 300.0 mA 2x5.85 V
{$st[i].ref} 2.7 VA 70/B 230 V - 6.0 V 6.0 V 225.0 mA 225.0 mA 2x7.8 V
{$st[i].ref} 2.7 VA 70/B 230 V - 7.5 V 7.5 V 180.0 mA 180.0 mA 2x9.75 V
{$st[i].ref} 2.7 VA 70/B 230 V - 9.0 V 9.0 V 150.0 mA 150.0 mA 2x11.7 V
{$st[i].ref} 2.7 VA 70/B 230 V - 12.0 V 12.0 V 112.0 mA 112.0 mA 2x15.6 V
{$st[i].ref} 2.7 VA 70/B 230 V - 15.0 V 15.0 V 90.0 mA 90.0 mA 2x19.5 V
{$st[i].ref} 2.7 VA 70/B 230 V - 18.0 V 18.0 V 75.0 mA 75.0 mA 2x23.4 V
{$st[i].ref} 2.7 VA 70/B 230 V - 24.0 V 24.0 V 56.0 mA 56.0 mA 2x31.2 V
{$st[i].ref} 3.2 VA 40/B 115 V - 4.5 V 4.5 V 356.0 mA 356.0 mA 2x5.85 V
{$st[i].ref} 3.2 VA 40/B 115 V - 6.0 V 6.0 V 267.0 mA 267.0 mA 2x7.8 V
{$st[i].ref} 3.2 VA 40/B 115 V - 7.5 V 7.5 V 213.0 mA 213.0 mA 2x9.75 V
{$st[i].ref} 3.2 VA 40/B 115 V - 9.0 V 9.0 V 178.0 mA 178.0 mA 2x11.7 V
{$st[i].ref} 3.2 VA 40/B 115 V - 12.0 V 12.0 V 133.0 mA 133.0 mA 2x15.6 V
{$st[i].ref} 3.2 VA 40/B 115 V - 15.0 V 15.0 V 107.0 mA 107.0 mA 2x19.5 V
{$st[i].ref} 3.2 VA 40/B 115 V - 18.0 V 18.0 V 89.0 mA 89.0 mA 2x23.4 V
{$st[i].ref} 3.2 VA 40/B 115 V - 24.0 V 24.0 V 67.0 mA 67.0 mA 2x31.2 V
{$st[i].ref} 2.7 VA 70/B 115 V - 4.5 V 4.5 V 300.0 mA 300.0 mA 2x5.85 V
{$st[i].ref} 2.7 VA 70/B 115 V - 6.0 V 6.0 V 225.0 mA 225.0 mA 2x7.8 V
{$st[i].ref} 2.7 VA 70/B 115 V - 7.5 V 7.5 V 180.0 mA 180.0 mA 2x9.75 V
{$st[i].ref} 2.7 VA 70/B 115 V - 9.0 V 9.0 V 150.0 mA 150.0 mA 2x11.7 V
{$st[i].ref} 2.7 VA 70/B 115 V - 12.0 V 12.0 V 112.0 mA 112.0 mA 2x15.6 V
{$st[i].ref} 2.7 VA 70/B 115 V - 15.0 V 15.0 V 90.0 mA 90.0 mA 2x19.5 V
{$st[i].ref} 2.7 VA 70/B 115 V - 18.0 V 18.0 V 75.0 mA 75.0 mA 2x23.4 V
{$st[i].ref} 2.7 VA 70/B 115 V - 24.0 V 24.0 V 56.0 mA 56.0 mA 2x31.2 V
