E4817

EI 48/16,8

External protection

10.0 VA - 40ºC/B

8.0 VA - 70ºC/B

Logo CE

Acording regulations:

EN61558 EN60590 EN60472 UL506 UL1585

Simple primary(V):

230 / 115

Dual secondary(V):

2x( 4.5 / 6.0 / 7.5 / 9.0 / 12.0 / 15.0 / 18.0 / 24.0 )

Center tapped secondary (V):

4.5 / 6.0 / 7.5 / 9.0 / 12.0 / 15.0 / 18.0 / 24.0

Vo/Vn:

1.3 (Vo-no load voltage, Vn-load voltage)

 E4817

Weight/unit:

300 gr

> Simple secondary

> Dual secondary

> Center tapped secondary

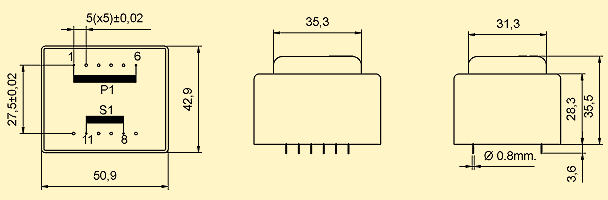

Simple secondary

E4817
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
E4817014 10.0 VA 40/B 230 V - 4.5 V - 2222.0 mA - 5.8 V
E4817000 10.0 VA 40/B 230 V - 6.0 V - 1667.0 mA - 7.8 V
E4817002 10.0 VA 40/B 230 V - 7.5 V - 1333.0 mA - 9.7 V
E4817004 10.0 VA 40/B 230 V - 9.0 V - 1111.0 mA - 11.7 V
E4817006 10.0 VA 40/B 230 V - 12.0 V - 833.0 mA - 15.6 V
E4817008 10.0 VA 40/B 230 V - 15.0 V - 667.0 mA - 19.5 V
E4817010 10.0 VA 40/B 230 V - 18.0 V - 556.0 mA - 23.4 V
E4817012 10.0 VA 40/B 230 V - 24.0 V - 417.0 mA - 31.2 V
E4817064 8.0 VA 70/B 230 V - 4.5 V - 1778.0 mA - 5.8 V
E4817050 8.0 VA 70/B 230 V - 6.0 V - 1333.0 mA - 7.8 V
E4817052 8.0 VA 70/B 230 V - 7.5 V - 1067.0 mA - 9.7 V
E4817054 8.0 VA 70/B 230 V - 9.0 V - 889.0 mA - 11.7 V
E4817056 8.0 VA 70/B 230 V - 12.0 V - 667.0 mA - 15.6 V
E4817058 8.0 VA 70/B 230 V - 15.0 V - 533.0 mA - 19.5 V
E4817060 8.0 VA 70/B 230 V - 18.0 V - 444.0 mA - 23.4 V
E4817062 8.0 VA 70/B 230 V - 24.0 V - 333.0 mA - 31.2 V
E4817114 10.0 VA 40/B 115 V - 4.5 V - 2222.0 mA - 5.8 V
E4817100 10.0 VA 40/B 115 V - 6.0 V - 1667.0 mA - 7.8 V
E4817102 10.0 VA 40/B 115 V - 7.5 V - 1333.0 mA - 9.7 V
E4817104 10.0 VA 40/B 115 V - 9.0 V - 1111.0 mA - 11.7 V
E4817106 10.0 VA 40/B 115 V - 12.0 V - 833.0 mA - 15.6 V
E4817108 10.0 VA 40/B 115 V - 15.0 V - 667.0 mA - 19.5 V
E4817110 10.0 VA 40/B 115 V - 18.0 V - 556.0 mA - 23.4 V
E4817112 10.0 VA 40/B 115 V - 24.0 V - 417.0 mA - 31.2 V
E4817164 8.0 VA 70/B 115 V - 4.5 V - 1778.0 mA - 5.8 V
E4817150 8.0 VA 70/B 115 V - 6.0 V - 1333.0 mA - 7.8 V
E4817152 8.0 VA 70/B 115 V - 7.5 V - 1067.0 mA - 9.7 V
E4817154 8.0 VA 70/B 115 V - 9.0 V - 889.0 mA - 11.7 V
E4817156 8.0 VA 70/B 115 V - 12.0 V - 667.0 mA - 15.6 V
E4817158 8.0 VA 70/B 115 V - 15.0 V - 533.0 mA - 19.5 V
E4817160 8.0 VA 70/B 115 V - 18.0 V - 444.0 mA - 23.4 V
E4817162 8.0 VA 70/B 115 V - 24.0 V - 333.0 mA - 31.2 V

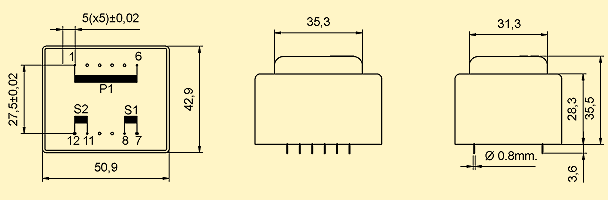

Dual secondary

E4817
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
E4817015 10.0 VA 40/B 230 V - 4.5 V 4.5 V 1111.0 mA 1111.0 mA 2x5.8 V
E4817001 10.0 VA 40/B 230 V - 6.0 V 6.0 V 833.0 mA 833.0 mA 2x7.8 V
E4817003 10.0 VA 40/B 230 V - 7.5 V 7.5 V 667.0 mA 667.0 mA 2x9.7 V
E4817005 10.0 VA 40/B 230 V - 9.0 V 9.0 V 556.0 mA 556.0 mA 2x11.7 V
E4817007 10.0 VA 40/B 230 V - 12.0 V 12.0 V 417.0 mA 417.0 mA 2x15.6 V
E4817009 10.0 VA 40/B 230 V - 15.0 V 15.0 V 333.0 mA 333.0 mA 2x19.5 V
E4817011 10.0 VA 40/B 230 V - 18.0 V 18.0 V 278.0 mA 278.0 mA 2x23.4 V
E4817013 10.0 VA 40/B 230 V - 24.0 V 24.0 V 208.0 mA 208.0 mA 2x31.2 V
E4817065 8.0 VA 70/B 230 V - 4.5 V 4.5 V 889.0 mA 889.0 mA 2x5.8 V
E4817051 8.0 VA 70/B 230 V - 6.0 V 6.0 V 667.0 mA 667.0 mA 2x7.8 V
E4817053 8.0 VA 70/B 230 V - 7.5 V 7.5 V 533.0 mA 533.0 mA 2x9.7 V
E4817055 8.0 VA 70/B 230 V - 9.0 V 9.0 V 444.0 mA 444.0 mA 2x11.7 V
E4817057 8.0 VA 70/B 230 V - 12.0 V 12.0 V 333.0 mA 333.0 mA 2x15.6 V
E4817059 8.0 VA 70/B 230 V - 15.0 V 15.0 V 267.0 mA 267.0 mA 2x19.5 V
E4817061 8.0 VA 70/B 230 V - 18.0 V 18.0 V 222.0 mA 222.0 mA 2x23.4 V
E4817063 8.0 VA 70/B 230 V - 24.0 V 24.0 V 167.0 mA 167.0 mA 2x31.2 V
E4817115 10.0 VA 40/B 115 V - 4.5 V 4.5 V 1111.0 mA 1111.0 mA 2x5.8 V
E4817101 10.0 VA 40/B 115 V - 6.0 V 6.0 V 833.0 mA 833.0 mA 2x7.8 V
E4817103 10.0 VA 40/B 115 V - 7.5 V 7.5 V 667.0 mA 667.0 mA 2x9.7 V
E4817105 10.0 VA 40/B 115 V - 9.0 V 9.0 V 556.0 mA 556.0 mA 2x11.7 V
E4817107 10.0 VA 40/B 115 V - 12.0 V 12.0 V 417.0 mA 417.0 mA 2x15.6 V
E4817109 10.0 VA 40/B 115 V - 15.0 V 15.0 V 333.0 mA 333.0 mA 2x19.5 V
E4817111 10.0 VA 40/B 115 V - 18.0 V 18.0 V 278.0 mA 278.0 mA 2x23.4 V
E4817113 10.0 VA 40/B 115 V - 24.0 V 24.0 V 208.0 mA 208.0 mA 2x31.2 V
E4817165 8.0 VA 70/B 115 V - 4.5 V 4.5 V 889.0 mA 889.0 mA 2x5.8 V
E4817151 8.0 VA 70/B 115 V - 6.0 V 6.0 V 667.0 mA 667.0 mA 2x7.8 V
E4817153 8.0 VA 70/B 115 V - 7.5 V 7.5 V 533.0 mA 533.0 mA 2x9.7 V
E4817155 8.0 VA 70/B 115 V - 9.0 V 9.0 V 444.0 mA 444.0 mA 2x11.7 V
E4817157 8.0 VA 70/B 115 V - 12.0 V 12.0 V 333.0 mA 333.0 mA 2x15.6 V
E4817159 8.0 VA 70/B 115 V - 15.0 V 15.0 V 267.0 mA 267.0 mA 2x19.5 V
E4817161 8.0 VA 70/B 115 V - 18.0 V 18.0 V 222.0 mA 222.0 mA 2x23.4 V
E4817163 8.0 VA 70/B 115 V - 24.0 V 24.0 V 167.0 mA 167.0 mA 2x31.2 V

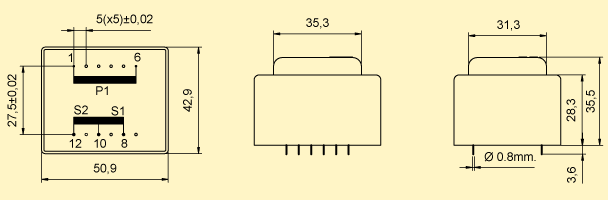

Center tapped secondary

E4817
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
{$st[i].ref} 10.0 VA 40/B 230 V - 4.5 V 4.5 V 1111.0 mA 1111.0 mA 2x5.8 V
{$st[i].ref} 10.0 VA 40/B 230 V - 6.0 V 6.0 V 833.0 mA 833.0 mA 2x7.8 V
{$st[i].ref} 10.0 VA 40/B 230 V - 7.5 V 7.5 V 667.0 mA 667.0 mA 2x9.7 V
{$st[i].ref} 10.0 VA 40/B 230 V - 9.0 V 9.0 V 556.0 mA 556.0 mA 2x11.7 V
{$st[i].ref} 10.0 VA 40/B 230 V - 12.0 V 12.0 V 417.0 mA 417.0 mA 2x15.6 V
{$st[i].ref} 10.0 VA 40/B 230 V - 15.0 V 15.0 V 333.0 mA 333.0 mA 2x19.5 V
{$st[i].ref} 10.0 VA 40/B 230 V - 18.0 V 18.0 V 278.0 mA 278.0 mA 2x23.4 V
{$st[i].ref} 10.0 VA 40/B 230 V - 24.0 V 24.0 V 208.0 mA 208.0 mA 2x31.2 V
{$st[i].ref} 8.0 VA 70/B 230 V - 4.5 V 4.5 V 889.0 mA 889.0 mA 2x5.8 V
{$st[i].ref} 8.0 VA 70/B 230 V - 6.0 V 6.0 V 667.0 mA 667.0 mA 2x7.8 V
{$st[i].ref} 8.0 VA 70/B 230 V - 7.5 V 7.5 V 533.0 mA 533.0 mA 2x9.7 V
{$st[i].ref} 8.0 VA 70/B 230 V - 9.0 V 9.0 V 444.0 mA 444.0 mA 2x11.7 V
{$st[i].ref} 8.0 VA 70/B 230 V - 12.0 V 12.0 V 333.0 mA 333.0 mA 2x15.6 V
{$st[i].ref} 8.0 VA 70/B 230 V - 15.0 V 15.0 V 267.0 mA 267.0 mA 2x19.5 V
{$st[i].ref} 8.0 VA 70/B 230 V - 18.0 V 18.0 V 222.0 mA 222.0 mA 2x23.4 V
{$st[i].ref} 8.0 VA 70/B 230 V - 24.0 V 24.0 V 167.0 mA 167.0 mA 2x31.2 V
{$st[i].ref} 10.0 VA 40/B 115 V - 4.5 V 4.5 V 1111.0 mA 1111.0 mA 2x5.8 V
{$st[i].ref} 10.0 VA 40/B 115 V - 6.0 V 6.0 V 833.0 mA 833.0 mA 2x7.8 V
{$st[i].ref} 10.0 VA 40/B 115 V - 7.5 V 7.5 V 667.0 mA 667.0 mA 2x9.7 V
{$st[i].ref} 10.0 VA 40/B 115 V - 9.0 V 9.0 V 556.0 mA 556.0 mA 2x11.7 V
{$st[i].ref} 10.0 VA 40/B 115 V - 12.0 V 12.0 V 417.0 mA 417.0 mA 2x15.6 V
{$st[i].ref} 10.0 VA 40/B 115 V - 15.0 V 15.0 V 333.0 mA 333.0 mA 2x19.5 V
{$st[i].ref} 10.0 VA 40/B 115 V - 18.0 V 18.0 V 278.0 mA 278.0 mA 2x23.4 V
{$st[i].ref} 10.0 VA 40/B 115 V - 24.0 V 24.0 V 208.0 mA 208.0 mA 2x31.2 V
{$st[i].ref} 8.0 VA 70/B 115 V - 4.5 V 4.5 V 889.0 mA 889.0 mA 2x5.8 V
{$st[i].ref} 8.0 VA 70/B 115 V - 6.0 V 6.0 V 667.0 mA 667.0 mA 2x7.8 V
{$st[i].ref} 8.0 VA 70/B 115 V - 7.5 V 7.5 V 533.0 mA 533.0 mA 2x9.7 V
{$st[i].ref} 8.0 VA 70/B 115 V - 9.0 V 9.0 V 444.0 mA 444.0 mA 2x11.7 V
{$st[i].ref} 8.0 VA 70/B 115 V - 12.0 V 12.0 V 333.0 mA 333.0 mA 2x15.6 V
{$st[i].ref} 8.0 VA 70/B 115 V - 15.0 V 15.0 V 267.0 mA 267.0 mA 2x19.5 V
{$st[i].ref} 8.0 VA 70/B 115 V - 18.0 V 18.0 V 222.0 mA 222.0 mA 2x23.4 V
{$st[i].ref} 8.0 VA 70/B 115 V - 24.0 V 24.0 V 167.0 mA 167.0 mA 2x31.2 V
