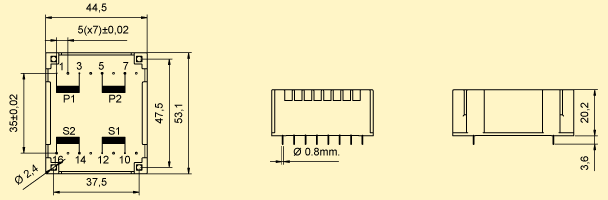

U3008

UI 30/7,5

External protection

4.0 VA - 40ºC/B

3.2 VA - 70ºC/B

Logo CE

Acording regulations:

EN61558 EN60590 EN60472 UL506 UL1585

Dual primary

2x( 115 )

Simple secondary(V):

Dual secondary(V):

2x( 4.5 / 6.0 / 7.5 / 9.0 / 12.0 / 15.0 / 18.0 / 24.0 )

Vo/Vn:

1.5 (Vo-no load voltage, Vn-load voltage)

 U3008

Weight/unit:

160 gr

> PRIM. (1 - 3 / 6 - 8) SEC. (10 - 12 / 13 - 15)

> PRIM. (1 - 3 / 5 - 7) SEC. (10 - 12 / 14 - 16)

PRIM. (1 - 3 / 6 - 8) SEC. (10 - 12 / 13 - 15)

HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
U3008007 4.0 VA 40/B 115 V 115 V 4.5 V 4.5 V 444.0 mA 444.0 mA 2x6.7 V
U3008000 4.0 VA 40/B 115 V 115 V 6.0 V 6.0 V 333.0 mA 333.0 mA 2x9.0 V
U3008001 4.0 VA 40/B 115 V 115 V 7.5 V 7.5 V 267.0 mA 267.0 mA 2x11.2 V
U3008002 4.0 VA 40/B 115 V 115 V 9.0 V 9.0 V 222.0 mA 222.0 mA 2x13.5 V
U3008003 4.0 VA 40/B 115 V 115 V 12.0 V 12.0 V 167.0 mA 167.0 mA 2x18.0 V
U3008004 4.0 VA 40/B 115 V 115 V 15.0 V 15.0 V 133.0 mA 133.0 mA 2x22.5 V
U3008005 4.0 VA 40/B 115 V 115 V 18.0 V 18.0 V 111.0 mA 111.0 mA 2x27.0 V
U3008006 4.0 VA 40/B 115 V 115 V 24.0 V 24.0 V 83.0 mA 83.0 mA 2x36.0 V
U3008507 4.0 VA 40/B 115 V 115 V 4.5 V 4.5 V 444.0 mA 444.0 mA 2x6.7 V
U3008500 4.0 VA 40/B 115 V 115 V 6.0 V 6.0 V 333.0 mA 333.0 mA 2x9.0 V
U3008501 4.0 VA 40/B 115 V 115 V 7.5 V 7.5 V 267.0 mA 267.0 mA 2x11.2 V
U3008502 4.0 VA 40/B 115 V 115 V 9.0 V 9.0 V 222.0 mA 222.0 mA 2x13.5 V
U3008503 4.0 VA 40/B 115 V 115 V 12.0 V 12.0 V 167.0 mA 167.0 mA 2x18.0 V
U3008504 4.0 VA 40/B 115 V 115 V 15.0 V 15.0 V 133.0 mA 133.0 mA 2x22.5 V
U3008505 4.0 VA 40/B 115 V 115 V 18.0 V 18.0 V 111.0 mA 111.0 mA 2x27.0 V
U3008506 4.0 VA 40/B 115 V 115 V 24.0 V 24.0 V 83.0 mA 83.0 mA 2x36.0 V

PRIM. (1 - 3 / 5 - 7) SEC. (10 - 12 / 14 - 16)

U3008
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
U3008507 4.0 VA 40/B 115 V 115 V 4.5 V 4.5 V 444.0 mA 444.0 mA 2x6.7 V
U3008500 4.0 VA 40/B 115 V 115 V 6.0 V 6.0 V 333.0 mA 333.0 mA 2x9.0 V
U3008501 4.0 VA 40/B 115 V 115 V 7.5 V 7.5 V 267.0 mA 267.0 mA 2x11.2 V
U3008502 4.0 VA 40/B 115 V 115 V 9.0 V 9.0 V 222.0 mA 222.0 mA 2x13.5 V
U3008503 4.0 VA 40/B 115 V 115 V 12.0 V 12.0 V 167.0 mA 167.0 mA 2x18.0 V
U3008504 4.0 VA 40/B 115 V 115 V 15.0 V 15.0 V 133.0 mA 133.0 mA 2x22.5 V
U3008505 4.0 VA 40/B 115 V 115 V 18.0 V 18.0 V 111.0 mA 111.0 mA 2x27.0 V
U3008506 4.0 VA 40/B 115 V 115 V 24.0 V 24.0 V 83.0 mA 83.0 mA 2x36.0 V
U3008557 3.2 VA 70/B 115 V 115 V 4.5 V 4.5 V 356.0 mA 356.0 mA 2x6.7 V
U3008550 3.2 VA 70/B 115 V 115 V 6.0 V 6.0 V 267.0 mA 267.0 mA 2x9.0 V
U3008551 3.2 VA 70/B 115 V 115 V 7.5 V 7.5 V 213.0 mA 213.0 mA 2x11.2 V
U3008552 3.2 VA 70/B 115 V 115 V 9.0 V 9.0 V 178.0 mA 178.0 mA 2x13.5 V
U3008553 3.2 VA 70/B 115 V 115 V 12.0 V 12.0 V 133.0 mA 133.0 mA 2x18.0 V
U3008554 3.2 VA 70/B 115 V 115 V 15.0 V 15.0 V 107.0 mA 107.0 mA 2x22.5 V
U3008555 3.2 VA 70/B 115 V 115 V 18.0 V 18.0 V 89.0 mA 89.0 mA 2x27.0 V
U3008556 3.2 VA 70/B 115 V 115 V 24.0 V 24.0 V 67.0 mA 67.0 mA 2x36.0 V
