Products - Ensapsultated transformers    Products - HR equivalents

Types and features | Series index | Technical information
External protection

U3017

UI 30/16,5

External protection

10.0 VA - 40ºC/B

8.0 VA - 70ºC/B

Logo CE

Acording regulations:

EN61558 EN60590 EN60472 UL506 UL1585

Dual primary

2x( 115 )

Simple secondary(V):

Dual secondary(V):

2x( 4.5 / 6.0 / 7.5 / 9.0 / 12.0 / 15.0 / 18.0 / 24.0 )

Vo/Vn:

1.45 (Vo-no load voltage, Vn-load voltage)

 U3017

Weight/unit:

255 gr

> PRIM. (1 - 3 / 6 - 8) SEC. (10 - 12 / 13 - 15)

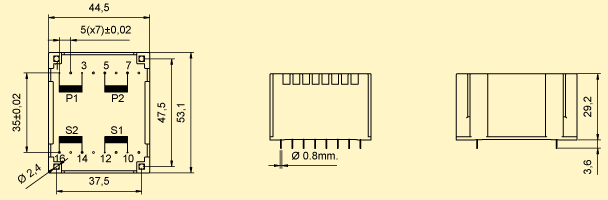

> PRIM. (1 - 3 / 5 - 7) SEC. (10 - 12 / 14 - 16)

PRIM. (1 - 3 / 6 - 8) SEC. (10 - 12 / 13 - 15)

HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
U3017007 10.0 VA 40/B 115 V 115 V 4.5 V 4.5 V 1111.0 mA 1111.0 mA 2x6.5 V
U3017000 10.0 VA 40/B 115 V 115 V 6.0 V 6.0 V 833.0 mA 833.0 mA 2x8.7 V
U3017001 10.0 VA 40/B 115 V 115 V 7.5 V 7.5 V 667.0 mA 667.0 mA 2x10.8 V
U3017002 10.0 VA 40/B 115 V 115 V 9.0 V 9.0 V 556.0 mA 556.0 mA 2x13.0 V
U3017003 10.0 VA 40/B 115 V 115 V 12.0 V 12.0 V 417.0 mA 417.0 mA 2x17.4 V
U3017004 10.0 VA 40/B 115 V 115 V 15.0 V 15.0 V 333.0 mA 333.0 mA 2x21.7 V
U3017005 10.0 VA 40/B 115 V 115 V 18.0 V 18.0 V 278.0 mA 278.0 mA 2x26.1 V
U3017006 10.0 VA 40/B 115 V 115 V 24.0 V 24.0 V 208.0 mA 208.0 mA 2x34.8 V
U3017507 10.0 VA 40/B 115 V 115 V 4.5 V 4.5 V 1111.0 mA 1111.0 mA 2x6.5 V
U3017500 10.0 VA 40/B 115 V 115 V 6.0 V 6.0 V 833.0 mA 833.0 mA 2x8.7 V
U3017501 10.0 VA 40/B 115 V 115 V 7.5 V 7.5 V 667.0 mA 667.0 mA 2x10.8 V
U3017502 10.0 VA 40/B 115 V 115 V 9.0 V 9.0 V 556.0 mA 556.0 mA 2x13.0 V
U3017503 10.0 VA 40/B 115 V 115 V 12.0 V 12.0 V 417.0 mA 417.0 mA 2x17.4 V
U3017504 10.0 VA 40/B 115 V 115 V 15.0 V 15.0 V 333.0 mA 333.0 mA 2x21.7 V
U3017505 10.0 VA 40/B 115 V 115 V 18.0 V 18.0 V 278.0 mA 278.0 mA 2x26.1 V
U3017506 10.0 VA 40/B 115 V 115 V 24.0 V 24.0 V 208.0 mA 208.0 mA 2x34.8 V

PRIM. (1 - 3 / 5 - 7) SEC. (10 - 12 / 14 - 16)

U3017
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
U3017507 10.0 VA 40/B 115 V 115 V 4.5 V 4.5 V 1111.0 mA 1111.0 mA 2x6.5 V
U3017500 10.0 VA 40/B 115 V 115 V 6.0 V 6.0 V 833.0 mA 833.0 mA 2x8.7 V
U3017501 10.0 VA 40/B 115 V 115 V 7.5 V 7.5 V 667.0 mA 667.0 mA 2x10.8 V
U3017502 10.0 VA 40/B 115 V 115 V 9.0 V 9.0 V 556.0 mA 556.0 mA 2x13.0 V
U3017503 10.0 VA 40/B 115 V 115 V 12.0 V 12.0 V 417.0 mA 417.0 mA 2x17.4 V
U3017504 10.0 VA 40/B 115 V 115 V 15.0 V 15.0 V 333.0 mA 333.0 mA 2x21.7 V
U3017505 10.0 VA 40/B 115 V 115 V 18.0 V 18.0 V 278.0 mA 278.0 mA 2x26.1 V
U3017506 10.0 VA 40/B 115 V 115 V 24.0 V 24.0 V 208.0 mA 208.0 mA 2x34.8 V
U3017557 8.0 VA 70/B 115 V 115 V 4.5 V 4.5 V 889.0 mA 889.0 mA 2x6.5 V
U3017550 8.0 VA 70/B 115 V 115 V 6.0 V 6.0 V 667.0 mA 667.0 mA 2x8.7 V
U3017551 8.0 VA 70/B 115 V 115 V 7.5 V 7.5 V 533.0 mA 533.0 mA 2x10.8 V
U3017552 8.0 VA 70/B 115 V 115 V 9.0 V 9.0 V 444.0 mA 444.0 mA 2x13.0 V
U3017553 8.0 VA 70/B 115 V 115 V 12.0 V 12.0 V 333.0 mA 333.0 mA 2x17.4 V
U3017554 8.0 VA 70/B 115 V 115 V 15.0 V 15.0 V 267.0 mA 267.0 mA 2x21.7 V
U3017555 8.0 VA 70/B 115 V 115 V 18.0 V 18.0 V 222.0 mA 222.0 mA 2x26.1 V
U3017556 8.0 VA 70/B 115 V 115 V 24.0 V 24.0 V 167.0 mA 167.0 mA 2x34.8 V
