External protection

C4817

EI 48/16,8

External protection

7.5 VA - 40ºC/B

Logo CE

Acording regulations:

EN61558/6 UL1585/2

Simple primary(V):

125 / 220

Simple secondary(V):

4.5 / 6.0 / 7.5 / 9.0 / 12.0 / 15.0 / 18.0 / 24.0

Dual secondary(V):

2x( 4.5 / 6.0 / 7.5 / 9.0 / 12.0 / 15.0 / 18.0 / 24.0 )

Vo/Vn:

1.3 (Vo-no load voltage, Vn-load voltage)

 C4817

Weight/unit:

250 gr

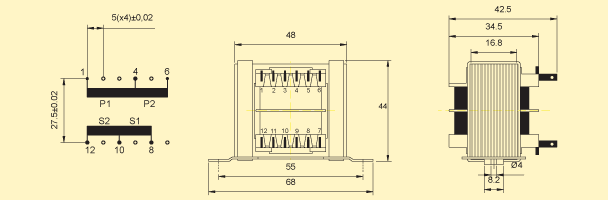

Dual secondary

C4817
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
C4817015 7.5 VA 40/B 125 V 220 V 4.5 V 4.5 V 833.0 mA 833.0 mA 2x5.85 V
C4817001 7.5 VA 40/B 125 V 220 V 6.0 V 6.0 V 625.0 mA 625.0 mA 2x7.8 V
C4817003 7.5 VA 40/B 125 V 220 V 7.5 V 7.5 V 500.0 mA 500.0 mA 2x9.75 V
C4817005 7.5 VA 40/B 125 V 220 V 9.0 V 9.0 V 417.0 mA 417.0 mA 2x11.7 V
C4817007 7.5 VA 40/B 125 V 220 V 12.0 V 12.0 V 312.0 mA 312.0 mA 2x15.6 V
C4817009 7.5 VA 40/B 125 V 220 V 15.0 V 15.0 V 250.0 mA 250.0 mA 2x19.5 V
C4817011 7.5 VA 40/B 125 V 220 V 18.0 V 18.0 V 208.0 mA 208.0 mA 2x23.4 V
C4817013 7.5 VA 40/B 125 V 220 V 24.0 V 24.0 V 156.0 mA 156.0 mA 2x31.2 V

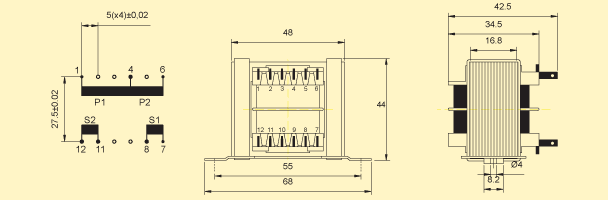

Center tapped secondary

C4817
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
C4817035 7.5 VA 40/B 125 V 220 V 4.5 V 4.5 V 833.0 mA 833.0 mA 2x5.85 V
C4817021 7.5 VA 40/B 125 V 220 V 6.0 V 6.0 V 625.0 mA 625.0 mA 2x7.8 V
C4817023 7.5 VA 40/B 125 V 220 V 7.5 V 7.5 V 500.0 mA 500.0 mA 2x9.75 V
C4817025 7.5 VA 40/B 125 V 220 V 9.0 V 9.0 V 417.0 mA 417.0 mA 2x11.7 V
C4817027 7.5 VA 40/B 125 V 220 V 12.0 V 12.0 V 312.0 mA 312.0 mA 2x15.6 V
C4817029 7.5 VA 40/B 125 V 220 V 15.0 V 15.0 V 250.0 mA 250.0 mA 2x19.5 V
C4817031 7.5 VA 40/B 125 V 220 V 18.0 V 18.0 V 208.0 mA 208.0 mA 2x23.4 V
C4817033 7.5 VA 40/B 125 V 220 V 24.0 V 24.0 V 156.0 mA 156.0 mA 2x31.2 V
