External protection

E3814

EI 38/13,6

External protection

4.0 VA - 40ºC/B

3.5 VA - 70ºC/B

Logo CE

Acording regulations:

EN61558 EN60590 EN60472 UL506 UL1585

Simple primary(V):

230 / 115

Dual secondary(V):

2x( 4.5 / 6.0 / 7.5 / 9.0 / 12.0 / 15.0 / 18.0 / 24.0 )

Center tapped secondary (V):

4.5 / 6.0 / 7.5 / 9.0 / 12.0 / 15.0 / 18.0 / 24.0

Vo/Vn:

1.4 (Vo-no load voltage, Vn-load voltage)

 E3814

Weight/unit:

150 gr

> Simple secondary

> Dual secondary

> Center tapped secondary

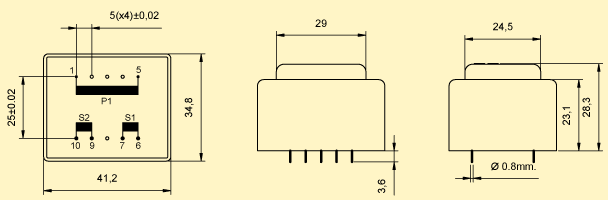

Simple secondary

E3814
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
E3814014 4.0 VA 40/B 230 V - 4.5 V - 889.0 mA - 6.3 V
E3814000 4.0 VA 40/B 230 V - 6.0 V - 667.0 mA - 8.4 V
E3814002 4.0 VA 40/B 230 V - 7.5 V - 533.0 mA - 10.5 V
E3814004 4.0 VA 40/B 230 V - 9.0 V - 444.0 mA - 12.6 V
E3814006 4.0 VA 40/B 230 V - 12.0 V - 333.0 mA - 16.8 V
E3814008 4.0 VA 40/B 230 V - 15.0 V - 267.0 mA - 21.0 V
E3814010 4.0 VA 40/B 230 V - 18.0 V - 222.0 mA - 25.2 V
E3814012 4.0 VA 40/B 230 V - 24.0 V - 167.0 mA - 33.6 V
E3814064 3.5 VA 70/B 230 V - 4.5 V - 778.0 mA - 6.3 V
E3814050 3.5 VA 70/B 230 V - 6.0 V - 583.0 mA - 8.4 V
E3814052 3.5 VA 70/B 230 V - 7.5 V - 467.0 mA - 10.5 V
E3814054 3.5 VA 70/B 230 V - 9.0 V - 389.0 mA - 12.6 V
E3814056 3.5 VA 70/B 230 V - 12.0 V - 292.0 mA - 16.8 V
E3814058 3.5 VA 70/B 230 V - 15.0 V - 233.0 mA - 21.0 V
E3814060 3.5 VA 70/B 230 V - 18.0 V - 194.0 mA - 25.2 V
E3814062 3.5 VA 70/B 230 V - 24.0 V - 146.0 mA - 33.6 V
E3814114 4.0 VA 40/B 115 V - 4.5 V - 889.0 mA - 6.3 V
E3814100 4.0 VA 40/B 115 V - 6.0 V - 667.0 mA - 8.4 V
E3814102 4.0 VA 40/B 115 V - 7.5 V - 533.0 mA - 10.5 V
E3814104 4.0 VA 40/B 115 V - 9.0 V - 444.0 mA - 12.6 V
E3814106 4.0 VA 40/B 115 V - 12.0 V - 333.0 mA - 16.8 V
E3814108 4.0 VA 40/B 115 V - 15.0 V - 267.0 mA - 21.0 V
E3814110 4.0 VA 40/B 115 V - 18.0 V - 222.0 mA - 25.2 V
E3814112 4.0 VA 40/B 115 V - 24.0 V - 167.0 mA - 33.6 V
E3814164 3.5 VA 70/B 115 V - 4.5 V - 778.0 mA - 6.3 V
E3814150 3.5 VA 70/B 115 V - 6.0 V - 583.0 mA - 8.4 V
E3814152 3.5 VA 70/B 115 V - 7.5 V - 467.0 mA - 10.5 V
E3814154 3.5 VA 70/B 115 V - 9.0 V - 389.0 mA - 12.6 V
E3814156 3.5 VA 70/B 115 V - 12.0 V - 292.0 mA - 16.8 V
E3814158 3.5 VA 70/B 115 V - 15.0 V - 233.0 mA - 21.0 V
E3814160 3.5 VA 70/B 115 V - 18.0 V - 194.0 mA - 25.2 V
E3814162 3.5 VA 70/B 115 V - 24.0 V - 146.0 mA - 33.6 V

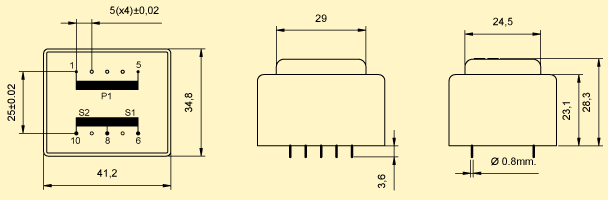

Dual secondary

E3814
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
E3814015 4.0 VA 40/B 230 V - 4.5 V 4.5 V 444.0 mA 444.0 mA 2x6.3 V
E3814001 4.0 VA 40/B 230 V - 6.0 V 6.0 V 333.0 mA 333.0 mA 2x8.4 V
E3814003 4.0 VA 40/B 230 V - 7.5 V 7.5 V 267.0 mA 267.0 mA 2x10.5 V
E3814005 4.0 VA 40/B 230 V - 9.0 V 9.0 V 222.0 mA 222.0 mA 2x12.6 V
E3814007 4.0 VA 40/B 230 V - 12.0 V 12.0 V 167.0 mA 167.0 mA 2x16.8 V
E3814009 4.0 VA 40/B 230 V - 15.0 V 15.0 V 133.0 mA 133.0 mA 2x21.0 V
E3814011 4.0 VA 40/B 230 V - 18.0 V 18.0 V 111.0 mA 111.0 mA 2x25.2 V
E3814013 4.0 VA 40/B 230 V - 24.0 V 24.0 V 83.0 mA 83.0 mA 2x33.6 V
E3814065 3.5 VA 70/B 230 V - 4.5 V 4.5 V 389.0 mA 389.0 mA 2x6.3 V
E3814051 3.5 VA 70/B 230 V - 6.0 V 6.0 V 292.0 mA 292.0 mA 2x8.4 V
E3814053 3.5 VA 70/B 230 V - 7.5 V 7.5 V 233.0 mA 233.0 mA 2x10.5 V
E3814055 3.5 VA 70/B 230 V - 9.0 V 9.0 V 194.0 mA 194.0 mA 2x12.6 V
E3814057 3.5 VA 70/B 230 V - 12.0 V 12.0 V 146.0 mA 146.0 mA 2x16.8 V
E3814059 3.5 VA 70/B 230 V - 15.0 V 15.0 V 117.0 mA 117.0 mA 2x21.0 V
E3814061 3.5 VA 70/B 230 V - 18.0 V 18.0 V 97.0 mA 97.0 mA 2x25.2 V
E3814063 3.5 VA 70/B 230 V - 24.0 V 24.0 V 73.0 mA 73.0 mA 2x33.6 V
E3814115 4.0 VA 40/B 115 V - 4.5 V 4.5 V 444.0 mA 444.0 mA 2x6.3 V
E3814101 4.0 VA 40/B 115 V - 6.0 V 6.0 V 333.0 mA 333.0 mA 2x8.4 V
E3814103 4.0 VA 40/B 115 V - 7.5 V 7.5 V 267.0 mA 267.0 mA 2x10.5 V
E3814105 4.0 VA 40/B 115 V - 9.0 V 9.0 V 222.0 mA 222.0 mA 2x12.6 V
E3814107 4.0 VA 40/B 115 V - 12.0 V 12.0 V 167.0 mA 167.0 mA 2x16.8 V
E3814109 4.0 VA 40/B 115 V - 15.0 V 15.0 V 133.0 mA 133.0 mA 2x21.0 V
E3814111 4.0 VA 40/B 115 V - 18.0 V 18.0 V 111.0 mA 111.0 mA 2x25.2 V
E3814113 4.0 VA 40/B 115 V - 24.0 V 24.0 V 83.0 mA 83.0 mA 2x33.6 V
E3814165 3.5 VA 70/B 115 V - 4.5 V 4.5 V 389.0 mA 389.0 mA 2x6.3 V
E3814151 3.5 VA 70/B 115 V - 6.0 V 6.0 V 292.0 mA 292.0 mA 2x8.4 V
E3814153 3.5 VA 70/B 115 V - 7.5 V 7.5 V 233.0 mA 233.0 mA 2x10.5 V
E3814155 3.5 VA 70/B 115 V - 9.0 V 9.0 V 194.0 mA 194.0 mA 2x12.6 V
E3814157 3.5 VA 70/B 115 V - 12.0 V 12.0 V 146.0 mA 146.0 mA 2x16.8 V
E3814159 3.5 VA 70/B 115 V - 15.0 V 15.0 V 117.0 mA 117.0 mA 2x21.0 V
E3814161 3.5 VA 70/B 115 V - 18.0 V 18.0 V 97.0 mA 97.0 mA 2x25.2 V
E3814163 3.5 VA 70/B 115 V - 24.0 V 24.0 V 73.0 mA 73.0 mA 2x33.6 V

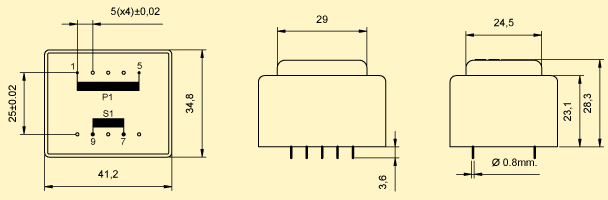

Center tapped secondary

E3814
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
{$st[i].ref} 4.0 VA 40/B 230 V - 4.5 V 4.5 V 444.0 mA 444.0 mA 2x6.3 V
{$st[i].ref} 4.0 VA 40/B 230 V - 6.0 V 6.0 V 333.0 mA 333.0 mA 2x8.4 V
{$st[i].ref} 4.0 VA 40/B 230 V - 7.5 V 7.5 V 267.0 mA 267.0 mA 2x10.5 V
{$st[i].ref} 4.0 VA 40/B 230 V - 9.0 V 9.0 V 222.0 mA 222.0 mA 2x12.6 V
{$st[i].ref} 4.0 VA 40/B 230 V - 12.0 V 12.0 V 167.0 mA 167.0 mA 2x16.8 V
{$st[i].ref} 4.0 VA 40/B 230 V - 15.0 V 15.0 V 133.0 mA 133.0 mA 2x21.0 V
{$st[i].ref} 4.0 VA 40/B 230 V - 18.0 V 18.0 V 111.0 mA 111.0 mA 2x25.2 V
{$st[i].ref} 4.0 VA 40/B 230 V - 24.0 V 24.0 V 83.0 mA 83.0 mA 2x33.6 V
{$st[i].ref} 3.5 VA 70/B 230 V - 4.5 V 4.5 V 389.0 mA 389.0 mA 2x6.3 V
{$st[i].ref} 3.5 VA 70/B 230 V - 6.0 V 6.0 V 292.0 mA 292.0 mA 2x8.4 V
{$st[i].ref} 3.5 VA 70/B 230 V - 7.5 V 7.5 V 233.0 mA 233.0 mA 2x10.5 V
{$st[i].ref} 3.5 VA 70/B 230 V - 9.0 V 9.0 V 194.0 mA 194.0 mA 2x12.6 V
{$st[i].ref} 3.5 VA 70/B 230 V - 12.0 V 12.0 V 146.0 mA 146.0 mA 2x16.8 V
{$st[i].ref} 3.5 VA 70/B 230 V - 15.0 V 15.0 V 117.0 mA 117.0 mA 2x21.0 V
{$st[i].ref} 3.5 VA 70/B 230 V - 18.0 V 18.0 V 97.0 mA 97.0 mA 2x25.2 V
{$st[i].ref} 3.5 VA 70/B 230 V - 24.0 V 24.0 V 73.0 mA 73.0 mA 2x33.6 V
{$st[i].ref} 4.0 VA 40/B 115 V - 4.5 V 4.5 V 444.0 mA 444.0 mA 2x6.3 V
{$st[i].ref} 4.0 VA 40/B 115 V - 6.0 V 6.0 V 333.0 mA 333.0 mA 2x8.4 V
{$st[i].ref} 4.0 VA 40/B 115 V - 7.5 V 7.5 V 267.0 mA 267.0 mA 2x10.5 V
{$st[i].ref} 4.0 VA 40/B 115 V - 9.0 V 9.0 V 222.0 mA 222.0 mA 2x12.6 V
{$st[i].ref} 4.0 VA 40/B 115 V - 12.0 V 12.0 V 167.0 mA 167.0 mA 2x16.8 V
{$st[i].ref} 4.0 VA 40/B 115 V - 15.0 V 15.0 V 133.0 mA 133.0 mA 2x21.0 V
{$st[i].ref} 4.0 VA 40/B 115 V - 18.0 V 18.0 V 111.0 mA 111.0 mA 2x25.2 V
{$st[i].ref} 4.0 VA 40/B 115 V - 24.0 V 24.0 V 83.0 mA 83.0 mA 2x33.6 V
{$st[i].ref} 3.5 VA 70/B 115 V - 4.5 V 4.5 V 389.0 mA 389.0 mA 2x6.3 V
{$st[i].ref} 3.5 VA 70/B 115 V - 6.0 V 6.0 V 292.0 mA 292.0 mA 2x8.4 V
{$st[i].ref} 3.5 VA 70/B 115 V - 7.5 V 7.5 V 233.0 mA 233.0 mA 2x10.5 V
{$st[i].ref} 3.5 VA 70/B 115 V - 9.0 V 9.0 V 194.0 mA 194.0 mA 2x12.6 V
{$st[i].ref} 3.5 VA 70/B 115 V - 12.0 V 12.0 V 146.0 mA 146.0 mA 2x16.8 V
{$st[i].ref} 3.5 VA 70/B 115 V - 15.0 V 15.0 V 117.0 mA 117.0 mA 2x21.0 V
{$st[i].ref} 3.5 VA 70/B 115 V - 18.0 V 18.0 V 97.0 mA 97.0 mA 2x25.2 V
{$st[i].ref} 3.5 VA 70/B 115 V - 24.0 V 24.0 V 73.0 mA 73.0 mA 2x33.6 V
