E6021

EI 60/21

External protection

25.0 VA - 40ºC/B

20.0 VA - 70ºC/B

Logo CE

Acording regulations:

EN61558 EN60590 EN60472 UL506 UL1585

Simple primary(V):

230 / 115

Dual secondary(V):

2x( 4.5 / 6.0 / 7.5 / 9.0 / 12.0 / 15.0 / 18.0 / 24.0 )

Center tapped secondary (V):

4.5 / 6.0 / 7.5 / 9.0 / 12.0 / 15.0 / 18.0 / 24.0

Vo/Vn:

1.2 (Vo-no load voltage, Vn-load voltage)

 E6021

Weight/unit:

560 gr

> Simple secondary

> Dual secondary

> Center tapped secondary

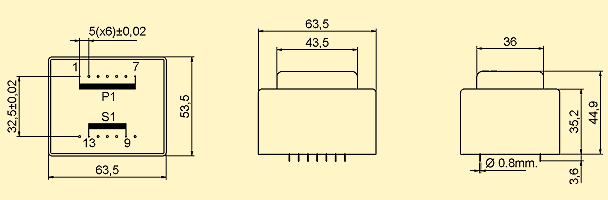

Simple secondary

E6021
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
E6021014 25.0 VA 40/B 230 V - 4.5 V - 5556.0 mA - 5.4 V
E6021000 25.0 VA 40/B 230 V - 6.0 V - 4167.0 mA - 7.2 V
E6021002 25.0 VA 40/B 230 V - 7.5 V - 3333.0 mA - 9.0 V
E6021004 25.0 VA 40/B 230 V - 9.0 V - 2778.0 mA - 10.8 V
E6021006 25.0 VA 40/B 230 V - 12.0 V - 2083.0 mA - 14.4 V
E6021008 25.0 VA 40/B 230 V - 15.0 V - 1667.0 mA - 18.0 V
E6021010 25.0 VA 40/B 230 V - 18.0 V - 1389.0 mA - 21.6 V
E6021012 25.0 VA 40/B 230 V - 24.0 V - 1042.0 mA - 28.8 V
E6021064 20.0 VA 70/B 230 V - 4.5 V - 4444.0 mA - 5.4 V
E6021050 20.0 VA 70/B 230 V - 6.0 V - 3333.0 mA - 7.2 V
E6021052 20.0 VA 70/B 230 V - 7.5 V - 2667.0 mA - 9.0 V
E6021054 20.0 VA 70/B 230 V - 9.0 V - 2222.0 mA - 10.8 V
E6021056 20.0 VA 70/B 230 V - 12.0 V - 1667.0 mA - 14.4 V
E6021058 20.0 VA 70/B 230 V - 15.0 V - 1333.0 mA - 18.0 V
E6021060 20.0 VA 70/B 230 V - 18.0 V - 1111.0 mA - 21.6 V
E6021062 20.0 VA 70/B 230 V - 24.0 V - 833.0 mA - 28.8 V
E6021114 25.0 VA 40/B 115 V - 4.5 V - 5556.0 mA - 5.4 V
E6021100 25.0 VA 40/B 115 V - 6.0 V - 4167.0 mA - 7.2 V
E6021102 25.0 VA 40/B 115 V - 7.5 V - 3333.0 mA - 9.0 V
E6021104 25.0 VA 40/B 115 V - 9.0 V - 2778.0 mA - 10.8 V
E6021106 25.0 VA 40/B 115 V - 12.0 V - 2083.0 mA - 14.4 V
E6021108 25.0 VA 40/B 115 V - 15.0 V - 1667.0 mA - 18.0 V
E6021110 25.0 VA 40/B 115 V - 18.0 V - 1389.0 mA - 21.6 V
E6021112 25.0 VA 40/B 115 V - 24.0 V - 1042.0 mA - 28.8 V
E6021164 20.0 VA 70/B 115 V - 4.5 V - 4444.0 mA - 5.4 V
E6021150 20.0 VA 70/B 115 V - 6.0 V - 3333.0 mA - 7.2 V
E6021152 20.0 VA 70/B 115 V - 7.5 V - 2667.0 mA - 9.0 V
E6021154 20.0 VA 70/B 115 V - 9.0 V - 2222.0 mA - 10.8 V
E6021156 20.0 VA 70/B 115 V - 12.0 V - 1667.0 mA - 14.4 V
E6021158 20.0 VA 70/B 115 V - 15.0 V - 1333.0 mA - 18.0 V
E6021160 20.0 VA 70/B 115 V - 18.0 V - 1111.0 mA - 21.6 V
E6021162 20.0 VA 70/B 115 V - 24.0 V - 833.0 mA - 28.8 V

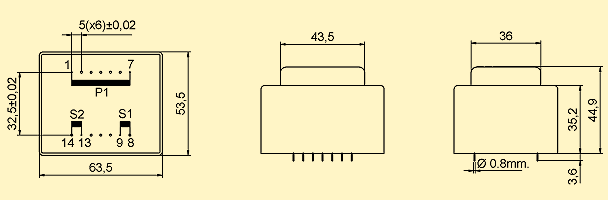

Dual secondary

E6021
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
E6021015 25.0 VA 40/B 230 V - 4.5 V 4.5 V 2778.0 mA 2778.0 mA 2x5.4 V
E6021001 25.0 VA 40/B 230 V - 6.0 V 6.0 V 2083.0 mA 2083.0 mA 2x7.2 V
E6021003 25.0 VA 40/B 230 V - 7.5 V 7.5 V 1667.0 mA 1667.0 mA 2x9.0 V
E6021005 25.0 VA 40/B 230 V - 9.0 V 9.0 V 1389.0 mA 1389.0 mA 2x10.8 V
E6021007 25.0 VA 40/B 230 V - 12.0 V 12.0 V 1042.0 mA 1042.0 mA 2x14.4 V
E6021009 25.0 VA 40/B 230 V - 15.0 V 15.0 V 833.0 mA 833.0 mA 2x18.0 V
E6021011 25.0 VA 40/B 230 V - 18.0 V 18.0 V 694.0 mA 694.0 mA 2x21.6 V
E6021013 25.0 VA 40/B 230 V - 24.0 V 24.0 V 521.0 mA 521.0 mA 2x28.8 V
E6021065 20.0 VA 70/B 230 V - 4.5 V 4.5 V 2222.0 mA 2222.0 mA 2x5.4 V
E6021051 20.0 VA 70/B 230 V - 6.0 V 6.0 V 1667.0 mA 1667.0 mA 2x7.2 V
E6021053 20.0 VA 70/B 230 V - 7.5 V 7.5 V 1333.0 mA 1333.0 mA 2x9.0 V
E6021055 20.0 VA 70/B 230 V - 9.0 V 9.0 V 1111.0 mA 1111.0 mA 2x10.8 V
E6021057 20.0 VA 70/B 230 V - 12.0 V 12.0 V 833.0 mA 833.0 mA 2x14.4 V
E6021059 20.0 VA 70/B 230 V - 15.0 V 15.0 V 667.0 mA 667.0 mA 2x18.0 V
E6021061 20.0 VA 70/B 230 V - 18.0 V 18.0 V 556.0 mA 556.0 mA 2x21.6 V
E6021063 20.0 VA 70/B 230 V - 24.0 V 24.0 V 417.0 mA 417.0 mA 2x28.8 V
E6021115 25.0 VA 40/B 115 V - 4.5 V 4.5 V 2778.0 mA 2778.0 mA 2x5.4 V
E6021101 25.0 VA 40/B 115 V - 6.0 V 6.0 V 2083.0 mA 2083.0 mA 2x7.2 V
E6021103 25.0 VA 40/B 115 V - 7.5 V 7.5 V 1667.0 mA 1667.0 mA 2x9.0 V
E6021105 25.0 VA 40/B 115 V - 9.0 V 9.0 V 1389.0 mA 1389.0 mA 2x10.8 V
E6021107 25.0 VA 40/B 115 V - 12.0 V 12.0 V 1042.0 mA 1042.0 mA 2x14.4 V
E6021109 25.0 VA 40/B 115 V - 15.0 V 15.0 V 833.0 mA 833.0 mA 2x18.0 V
E6021111 25.0 VA 40/B 115 V - 18.0 V 18.0 V 694.0 mA 694.0 mA 2x21.6 V
E6021113 25.0 VA 40/B 115 V - 24.0 V 24.0 V 521.0 mA 521.0 mA 2x28.8 V
E6021165 20.0 VA 70/B 115 V - 4.5 V 4.5 V 2222.0 mA 2222.0 mA 2x5.4 V
E6021151 20.0 VA 70/B 115 V - 6.0 V 6.0 V 1667.0 mA 1667.0 mA 2x7.2 V
E6021153 20.0 VA 70/B 115 V - 7.5 V 7.5 V 1333.0 mA 1333.0 mA 2x9.0 V
E6021155 20.0 VA 70/B 115 V - 9.0 V 9.0 V 1111.0 mA 1111.0 mA 2x10.8 V
E6021157 20.0 VA 70/B 115 V - 12.0 V 12.0 V 833.0 mA 833.0 mA 2x14.4 V
E6021159 20.0 VA 70/B 115 V - 15.0 V 15.0 V 667.0 mA 667.0 mA 2x18.0 V
E6021161 20.0 VA 70/B 115 V - 18.0 V 18.0 V 556.0 mA 556.0 mA 2x21.6 V
E6021163 20.0 VA 70/B 115 V - 24.0 V 24.0 V 417.0 mA 417.0 mA 2x28.8 V

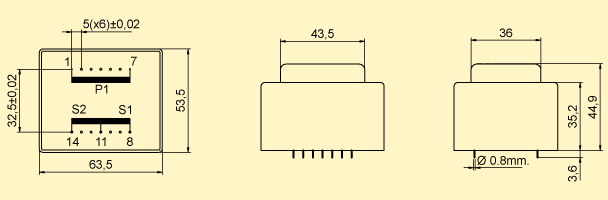

Center tapped secondary

E6021
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
{$st[i].ref} 25.0 VA 40/B 230 V - 4.5 V 4.5 V 2778.0 mA 2778.0 mA 2x5.4 V
{$st[i].ref} 25.0 VA 40/B 230 V - 6.0 V 6.0 V 2083.0 mA 2083.0 mA 2x7.2 V
{$st[i].ref} 25.0 VA 40/B 230 V - 7.5 V 7.5 V 1667.0 mA 1667.0 mA 2x9.0 V
{$st[i].ref} 25.0 VA 40/B 230 V - 9.0 V 9.0 V 1389.0 mA 1389.0 mA 2x10.8 V
{$st[i].ref} 25.0 VA 40/B 230 V - 12.0 V 12.0 V 1042.0 mA 1042.0 mA 2x14.4 V
{$st[i].ref} 25.0 VA 40/B 230 V - 15.0 V 15.0 V 833.0 mA 833.0 mA 2x18.0 V
{$st[i].ref} 25.0 VA 40/B 230 V - 18.0 V 18.0 V 694.0 mA 694.0 mA 2x21.6 V
{$st[i].ref} 25.0 VA 40/B 230 V - 24.0 V 24.0 V 521.0 mA 521.0 mA 2x28.8 V
{$st[i].ref} 20.0 VA 70/B 230 V - 4.5 V 4.5 V 2222.0 mA 2222.0 mA 2x5.4 V
{$st[i].ref} 20.0 VA 70/B 230 V - 6.0 V 6.0 V 1667.0 mA 1667.0 mA 2x7.2 V
{$st[i].ref} 20.0 VA 70/B 230 V - 7.5 V 7.5 V 1333.0 mA 1333.0 mA 2x9.0 V
{$st[i].ref} 20.0 VA 70/B 230 V - 9.0 V 9.0 V 1111.0 mA 1111.0 mA 2x10.8 V
{$st[i].ref} 20.0 VA 70/B 230 V - 12.0 V 12.0 V 833.0 mA 833.0 mA 2x14.4 V
{$st[i].ref} 20.0 VA 70/B 230 V - 15.0 V 15.0 V 667.0 mA 667.0 mA 2x18.0 V
{$st[i].ref} 20.0 VA 70/B 230 V - 18.0 V 18.0 V 556.0 mA 556.0 mA 2x21.6 V
{$st[i].ref} 20.0 VA 70/B 230 V - 24.0 V 24.0 V 417.0 mA 417.0 mA 2x28.8 V
{$st[i].ref} 25.0 VA 40/B 115 V - 4.5 V 4.5 V 2778.0 mA 2778.0 mA 2x5.4 V
{$st[i].ref} 25.0 VA 40/B 115 V - 6.0 V 6.0 V 2083.0 mA 2083.0 mA 2x7.2 V
{$st[i].ref} 25.0 VA 40/B 115 V - 7.5 V 7.5 V 1667.0 mA 1667.0 mA 2x9.0 V
{$st[i].ref} 25.0 VA 40/B 115 V - 9.0 V 9.0 V 1389.0 mA 1389.0 mA 2x10.8 V
{$st[i].ref} 25.0 VA 40/B 115 V - 12.0 V 12.0 V 1042.0 mA 1042.0 mA 2x14.4 V
{$st[i].ref} 25.0 VA 40/B 115 V - 15.0 V 15.0 V 833.0 mA 833.0 mA 2x18.0 V
{$st[i].ref} 25.0 VA 40/B 115 V - 18.0 V 18.0 V 694.0 mA 694.0 mA 2x21.6 V
{$st[i].ref} 25.0 VA 40/B 115 V - 24.0 V 24.0 V 521.0 mA 521.0 mA 2x28.8 V
{$st[i].ref} 20.0 VA 70/B 115 V - 4.5 V 4.5 V 2222.0 mA 2222.0 mA 2x5.4 V
{$st[i].ref} 20.0 VA 70/B 115 V - 6.0 V 6.0 V 1667.0 mA 1667.0 mA 2x7.2 V
{$st[i].ref} 20.0 VA 70/B 115 V - 7.5 V 7.5 V 1333.0 mA 1333.0 mA 2x9.0 V
{$st[i].ref} 20.0 VA 70/B 115 V - 9.0 V 9.0 V 1111.0 mA 1111.0 mA 2x10.8 V
{$st[i].ref} 20.0 VA 70/B 115 V - 12.0 V 12.0 V 833.0 mA 833.0 mA 2x14.4 V
{$st[i].ref} 20.0 VA 70/B 115 V - 15.0 V 15.0 V 667.0 mA 667.0 mA 2x18.0 V
{$st[i].ref} 20.0 VA 70/B 115 V - 18.0 V 18.0 V 556.0 mA 556.0 mA 2x21.6 V
{$st[i].ref} 20.0 VA 70/B 115 V - 24.0 V 24.0 V 417.0 mA 417.0 mA 2x28.8 V
