External protection

E6021B

EI 60/21

External protection

25.0 VA - 40ºC/B

20.0 VA - 70ºC/B

Logo CE

Acording regulations:

EN61558 EN60590 EN60472 UL506 UL1585

Simple primary(V):

230 / 115

Dual secondary(V):

2x( 4.5 / 6.0 / 7.5 / 9.0 / 12.0 / 15.0 / 18.0 / 24.0 )

Center tapped secondary (V):

4.5 / 6.0 / 7.5 / 9.0 / 12.0 / 15.0 / 18.0 / 24.0

Vo/Vn:

1.2 (Vo-no load voltage, Vn-load voltage)

 E6021B

Weight/unit:

570 gr

> Simple secondary

> Dual secondary

> Center tapped secondary

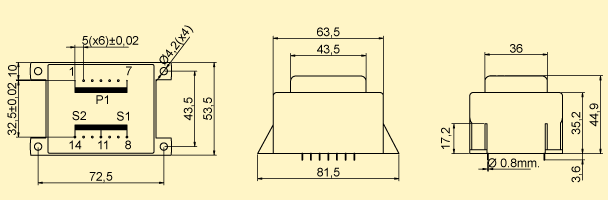

Simple secondary

E6021B
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
E6021514 25.0 VA 40/B 230 V - 4.5 V - 5556.0 mA - 5.4 V
E6021500 25.0 VA 40/B 230 V - 6.0 V - 4167.0 mA - 7.2 V
E6021502 25.0 VA 40/B 230 V - 7.5 V - 3333.0 mA - 9.0 V
E6021504 25.0 VA 40/B 230 V - 9.0 V - 2778.0 mA - 10.8 V
E6021506 25.0 VA 40/B 230 V - 12.0 V - 2083.0 mA - 14.4 V
E6021508 25.0 VA 40/B 230 V - 15.0 V - 1667.0 mA - 18.0 V
E6021510 25.0 VA 40/B 230 V - 18.0 V - 1389.0 mA - 21.6 V
E6021512 25.0 VA 40/B 230 V - 24.0 V - 1042.0 mA - 28.8 V
E6021564 20.0 VA 70/B 230 V - 4.5 V - 4444.0 mA - 5.4 V
E6021550 20.0 VA 70/B 230 V - 6.0 V - 3333.0 mA - 7.2 V
E6021552 20.0 VA 70/B 230 V - 7.5 V - 2667.0 mA - 9.0 V
E6021554 20.0 VA 70/B 230 V - 9.0 V - 2222.0 mA - 10.8 V
E6021556 20.0 VA 70/B 230 V - 12.0 V - 1667.0 mA - 14.4 V
E6021558 20.0 VA 70/B 230 V - 15.0 V - 1333.0 mA - 18.0 V
E6021560 20.0 VA 70/B 230 V - 18.0 V - 1111.0 mA - 21.6 V
E6021562 20.0 VA 70/B 230 V - 24.0 V - 833.0 mA - 28.8 V
E6021614 25.0 VA 40/B 115 V - 4.5 V - 5556.0 mA - 5.4 V
E6021600 25.0 VA 40/B 115 V - 6.0 V - 4167.0 mA - 7.2 V
E6021602 25.0 VA 40/B 115 V - 7.5 V - 3333.0 mA - 9.0 V
E6021604 25.0 VA 40/B 115 V - 9.0 V - 2778.0 mA - 10.8 V
E6021606 25.0 VA 40/B 115 V - 12.0 V - 2083.0 mA - 14.4 V
E6021608 25.0 VA 40/B 115 V - 15.0 V - 1667.0 mA - 18.0 V
E6021610 25.0 VA 40/B 115 V - 18.0 V - 1389.0 mA - 21.6 V
E6021612 25.0 VA 40/B 115 V - 24.0 V - 1042.0 mA - 28.8 V
E6021664 20.0 VA 70/B 115 V - 4.5 V - 4444.0 mA - 5.4 V
E6021650 20.0 VA 70/B 115 V - 6.0 V - 3333.0 mA - 7.2 V
E6021652 20.0 VA 70/B 115 V - 7.5 V - 2667.0 mA - 9.0 V
E6021654 20.0 VA 70/B 115 V - 9.0 V - 2222.0 mA - 10.8 V
E6021656 20.0 VA 70/B 115 V - 12.0 V - 1667.0 mA - 14.4 V
E6021658 20.0 VA 70/B 115 V - 15.0 V - 1333.0 mA - 18.0 V
E6021660 20.0 VA 70/B 115 V - 18.0 V - 1111.0 mA - 21.6 V
E6021662 20.0 VA 70/B 115 V - 24.0 V - 833.0 mA - 28.8 V

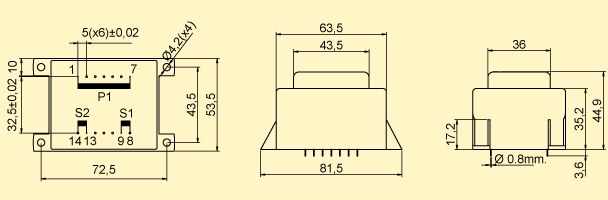

Dual secondary

E6021B
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
E6021515 25.0 VA 40/B 230 V - 4.5 V 4.5 V 2778.0 mA 2778.0 mA 2x5.4 V
E6021501 25.0 VA 40/B 230 V - 6.0 V 6.0 V 2083.0 mA 2083.0 mA 2x7.2 V
E6021503 25.0 VA 40/B 230 V - 7.5 V 7.5 V 1667.0 mA 1667.0 mA 2x9.0 V
E6021505 25.0 VA 40/B 230 V - 9.0 V 9.0 V 1389.0 mA 1389.0 mA 2x10.8 V
E6021507 25.0 VA 40/B 230 V - 12.0 V 12.0 V 1042.0 mA 1042.0 mA 2x14.4 V
E6021509 25.0 VA 40/B 230 V - 15.0 V 15.0 V 833.0 mA 833.0 mA 2x18.0 V
E6021511 25.0 VA 40/B 230 V - 18.0 V 18.0 V 694.0 mA 694.0 mA 2x21.6 V
E6021513 25.0 VA 40/B 230 V - 24.0 V 24.0 V 521.0 mA 521.0 mA 2x28.8 V
E6021565 20.0 VA 70/B 230 V - 4.5 V 4.5 V 2222.0 mA 2222.0 mA 2x5.4 V
E6021551 20.0 VA 70/B 230 V - 6.0 V 6.0 V 1667.0 mA 1667.0 mA 2x7.2 V
E6021553 20.0 VA 70/B 230 V - 7.5 V 7.5 V 1333.0 mA 1333.0 mA 2x9.0 V
E6021555 20.0 VA 70/B 230 V - 9.0 V 9.0 V 1111.0 mA 1111.0 mA 2x10.8 V
E6021557 20.0 VA 70/B 230 V - 12.0 V 12.0 V 833.0 mA 833.0 mA 2x14.4 V
E6021559 20.0 VA 70/B 230 V - 15.0 V 15.0 V 667.0 mA 667.0 mA 2x18.0 V
E6021561 20.0 VA 70/B 230 V - 18.0 V 18.0 V 556.0 mA 556.0 mA 2x21.6 V
E6021563 20.0 VA 70/B 230 V - 24.0 V 24.0 V 417.0 mA 417.0 mA 2x28.8 V
E6021615 25.0 VA 40/B 115 V - 4.5 V 4.5 V 2778.0 mA 2778.0 mA 2x5.4 V
E6021601 25.0 VA 40/B 115 V - 6.0 V 6.0 V 2083.0 mA 2083.0 mA 2x7.2 V
E6021603 25.0 VA 40/B 115 V - 7.5 V 7.5 V 1667.0 mA 1667.0 mA 2x9.0 V
E6021605 25.0 VA 40/B 115 V - 9.0 V 9.0 V 1389.0 mA 1389.0 mA 2x10.8 V
E6021607 25.0 VA 40/B 115 V - 12.0 V 12.0 V 1042.0 mA 1042.0 mA 2x14.4 V
E6021609 25.0 VA 40/B 115 V - 15.0 V 15.0 V 833.0 mA 833.0 mA 2x18.0 V
E6021611 25.0 VA 40/B 115 V - 18.0 V 18.0 V 694.0 mA 694.0 mA 2x21.6 V
E6021613 25.0 VA 40/B 115 V - 24.0 V 24.0 V 521.0 mA 521.0 mA 2x28.8 V
E6021665 20.0 VA 70/B 115 V - 4.5 V 4.5 V 2222.0 mA 2222.0 mA 2x5.4 V
E6021651 20.0 VA 70/B 115 V - 6.0 V 6.0 V 1667.0 mA 1667.0 mA 2x7.2 V
E6021653 20.0 VA 70/B 115 V - 7.5 V 7.5 V 1333.0 mA 1333.0 mA 2x9.0 V
E6021655 20.0 VA 70/B 115 V - 9.0 V 9.0 V 1111.0 mA 1111.0 mA 2x10.8 V
E6021657 20.0 VA 70/B 115 V - 12.0 V 12.0 V 833.0 mA 833.0 mA 2x14.4 V
E6021659 20.0 VA 70/B 115 V - 15.0 V 15.0 V 667.0 mA 667.0 mA 2x18.0 V
E6021661 20.0 VA 70/B 115 V - 18.0 V 18.0 V 556.0 mA 556.0 mA 2x21.6 V
E6021663 20.0 VA 70/B 115 V - 24.0 V 24.0 V 417.0 mA 417.0 mA 2x28.8 V

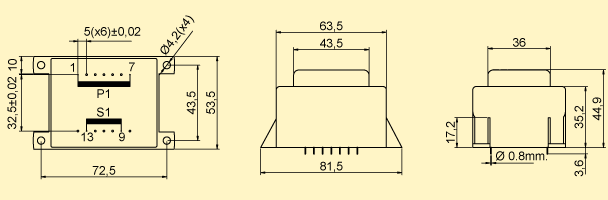

Center tapped secondary

E6021B
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
{$st[i].ref} 25.0 VA 40/B 230 V - 4.5 V 4.5 V 2778.0 mA 2778.0 mA 2x5.4 V
{$st[i].ref} 25.0 VA 40/B 230 V - 6.0 V 6.0 V 2083.0 mA 2083.0 mA 2x7.2 V
{$st[i].ref} 25.0 VA 40/B 230 V - 7.5 V 7.5 V 1667.0 mA 1667.0 mA 2x9.0 V
{$st[i].ref} 25.0 VA 40/B 230 V - 9.0 V 9.0 V 1389.0 mA 1389.0 mA 2x10.8 V
{$st[i].ref} 25.0 VA 40/B 230 V - 12.0 V 12.0 V 1042.0 mA 1042.0 mA 2x14.4 V
{$st[i].ref} 25.0 VA 40/B 230 V - 15.0 V 15.0 V 833.0 mA 833.0 mA 2x18.0 V
{$st[i].ref} 25.0 VA 40/B 230 V - 18.0 V 18.0 V 694.0 mA 694.0 mA 2x21.6 V
{$st[i].ref} 25.0 VA 40/B 230 V - 24.0 V 24.0 V 521.0 mA 521.0 mA 2x28.8 V
{$st[i].ref} 20.0 VA 70/B 230 V - 4.5 V 4.5 V 2222.0 mA 2222.0 mA 2x5.4 V
{$st[i].ref} 20.0 VA 70/B 230 V - 6.0 V 6.0 V 1667.0 mA 1667.0 mA 2x7.2 V
{$st[i].ref} 20.0 VA 70/B 230 V - 7.5 V 7.5 V 1333.0 mA 1333.0 mA 2x9.0 V
{$st[i].ref} 20.0 VA 70/B 230 V - 9.0 V 9.0 V 1111.0 mA 1111.0 mA 2x10.8 V
{$st[i].ref} 20.0 VA 70/B 230 V - 12.0 V 12.0 V 833.0 mA 833.0 mA 2x14.4 V
{$st[i].ref} 20.0 VA 70/B 230 V - 15.0 V 15.0 V 667.0 mA 667.0 mA 2x18.0 V
{$st[i].ref} 20.0 VA 70/B 230 V - 18.0 V 18.0 V 556.0 mA 556.0 mA 2x21.6 V
{$st[i].ref} 20.0 VA 70/B 230 V - 24.0 V 24.0 V 417.0 mA 417.0 mA 2x28.8 V
{$st[i].ref} 25.0 VA 40/B 115 V - 4.5 V 4.5 V 2778.0 mA 2778.0 mA 2x5.4 V
{$st[i].ref} 25.0 VA 40/B 115 V - 6.0 V 6.0 V 2083.0 mA 2083.0 mA 2x7.2 V
{$st[i].ref} 25.0 VA 40/B 115 V - 7.5 V 7.5 V 1667.0 mA 1667.0 mA 2x9.0 V
{$st[i].ref} 25.0 VA 40/B 115 V - 9.0 V 9.0 V 1389.0 mA 1389.0 mA 2x10.8 V
{$st[i].ref} 25.0 VA 40/B 115 V - 12.0 V 12.0 V 1042.0 mA 1042.0 mA 2x14.4 V
{$st[i].ref} 25.0 VA 40/B 115 V - 15.0 V 15.0 V 833.0 mA 833.0 mA 2x18.0 V
{$st[i].ref} 25.0 VA 40/B 115 V - 18.0 V 18.0 V 694.0 mA 694.0 mA 2x21.6 V
{$st[i].ref} 25.0 VA 40/B 115 V - 24.0 V 24.0 V 521.0 mA 521.0 mA 2x28.8 V
{$st[i].ref} 20.0 VA 70/B 115 V - 4.5 V 4.5 V 2222.0 mA 2222.0 mA 2x5.4 V
{$st[i].ref} 20.0 VA 70/B 115 V - 6.0 V 6.0 V 1667.0 mA 1667.0 mA 2x7.2 V
{$st[i].ref} 20.0 VA 70/B 115 V - 7.5 V 7.5 V 1333.0 mA 1333.0 mA 2x9.0 V
{$st[i].ref} 20.0 VA 70/B 115 V - 9.0 V 9.0 V 1111.0 mA 1111.0 mA 2x10.8 V
{$st[i].ref} 20.0 VA 70/B 115 V - 12.0 V 12.0 V 833.0 mA 833.0 mA 2x14.4 V
{$st[i].ref} 20.0 VA 70/B 115 V - 15.0 V 15.0 V 667.0 mA 667.0 mA 2x18.0 V
{$st[i].ref} 20.0 VA 70/B 115 V - 18.0 V 18.0 V 556.0 mA 556.0 mA 2x21.6 V
{$st[i].ref} 20.0 VA 70/B 115 V - 24.0 V 24.0 V 417.0 mA 417.0 mA 2x28.8 V
