External protection

U3010

UI 30/10,5

External protection

6.0 VA - 40ºC/B

5.0 VA - 70ºC/B

Logo CE

Acording regulations:

EN61558 EN60590 EN60472 UL506 UL1585

Dual primary

2x( 115 )

Simple secondary(V):

Dual secondary(V):

2x( 4.5 / 6.0 / 7.5 / 9.0 / 12.0 / 15.0 / 18.0 / 24.0 )

Vo/Vn:

1.4 (Vo-no load voltage, Vn-load voltage)

 U3010

Weight/unit:

190 gr

> PRIM. (1 - 3 / 6 - 8) SEC. (10 - 12 / 13 - 15)

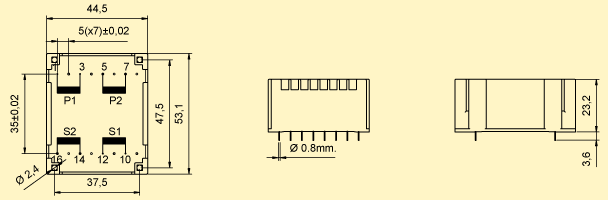

> PRIM. (1 - 3 / 5 - 7) SEC. (10 - 12 / 14 - 16)

PRIM. (1 - 3 / 6 - 8) SEC. (10 - 12 / 13 - 15)

HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
U3010007 6.0 VA 40/B 115 V 115 V 4.5 V 4.5 V 667.0 mA 667.0 mA 2x6.3 V
U3010000 6.0 VA 40/B 115 V 115 V 6.0 V 6.0 V 500.0 mA 500.0 mA 2x8.4 V
U3010001 6.0 VA 40/B 115 V 115 V 7.5 V 7.5 V 400.0 mA 400.0 mA 2x10.5 V
U3010002 6.0 VA 40/B 115 V 115 V 9.0 V 9.0 V 333.0 mA 333.0 mA 2x12.6 V
U3010003 6.0 VA 40/B 115 V 115 V 12.0 V 12.0 V 250.0 mA 250.0 mA 2x16.8 V
U3010004 6.0 VA 40/B 115 V 115 V 15.0 V 15.0 V 200.0 mA 200.0 mA 2x21.0 V
U3010005 6.0 VA 40/B 115 V 115 V 18.0 V 18.0 V 167.0 mA 167.0 mA 2x25.2 V
U3010006 6.0 VA 40/B 115 V 115 V 24.0 V 24.0 V 125.0 mA 125.0 mA 2x33.6 V
U3010507 6.0 VA 40/B 115 V 115 V 4.5 V 4.5 V 667.0 mA 667.0 mA 2x6.3 V
U3010500 6.0 VA 40/B 115 V 115 V 6.0 V 6.0 V 500.0 mA 500.0 mA 2x8.4 V
U3010501 6.0 VA 40/B 115 V 115 V 7.5 V 7.5 V 400.0 mA 400.0 mA 2x10.5 V
U3010502 6.0 VA 40/B 115 V 115 V 9.0 V 9.0 V 333.0 mA 333.0 mA 2x12.6 V
U3010503 6.0 VA 40/B 115 V 115 V 12.0 V 12.0 V 250.0 mA 250.0 mA 2x16.8 V
U3010504 6.0 VA 40/B 115 V 115 V 15.0 V 15.0 V 200.0 mA 200.0 mA 2x21.0 V
U3010505 6.0 VA 40/B 115 V 115 V 18.0 V 18.0 V 167.0 mA 167.0 mA 2x25.2 V
U3010506 6.0 VA 40/B 115 V 115 V 24.0 V 24.0 V 125.0 mA 125.0 mA 2x33.6 V

PRIM. (1 - 3 / 5 - 7) SEC. (10 - 12 / 14 - 16)

U3010
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
U3010507 6.0 VA 40/B 115 V 115 V 4.5 V 4.5 V 667.0 mA 667.0 mA 2x6.3 V
U3010500 6.0 VA 40/B 115 V 115 V 6.0 V 6.0 V 500.0 mA 500.0 mA 2x8.4 V
U3010501 6.0 VA 40/B 115 V 115 V 7.5 V 7.5 V 400.0 mA 400.0 mA 2x10.5 V
U3010502 6.0 VA 40/B 115 V 115 V 9.0 V 9.0 V 333.0 mA 333.0 mA 2x12.6 V
U3010503 6.0 VA 40/B 115 V 115 V 12.0 V 12.0 V 250.0 mA 250.0 mA 2x16.8 V
U3010504 6.0 VA 40/B 115 V 115 V 15.0 V 15.0 V 200.0 mA 200.0 mA 2x21.0 V
U3010505 6.0 VA 40/B 115 V 115 V 18.0 V 18.0 V 167.0 mA 167.0 mA 2x25.2 V
U3010506 6.0 VA 40/B 115 V 115 V 24.0 V 24.0 V 125.0 mA 125.0 mA 2x33.6 V
U3010557 5.0 VA 70/B 115 V 115 V 4.5 V 4.5 V 556.0 mA 556.0 mA 2x6.3 V
U3010550 5.0 VA 70/B 115 V 115 V 6.0 V 6.0 V 417.0 mA 417.0 mA 2x8.4 V
U3010551 5.0 VA 70/B 115 V 115 V 7.5 V 7.5 V 333.0 mA 333.0 mA 2x10.5 V
U3010552 5.0 VA 70/B 115 V 115 V 9.0 V 9.0 V 278.0 mA 278.0 mA 2x12.6 V
U3010553 5.0 VA 70/B 115 V 115 V 12.0 V 12.0 V 208.0 mA 208.0 mA 2x16.8 V
U3010554 5.0 VA 70/B 115 V 115 V 15.0 V 15.0 V 167.0 mA 167.0 mA 2x21.0 V
U3010555 5.0 VA 70/B 115 V 115 V 18.0 V 18.0 V 139.0 mA 139.0 mA 2x25.2 V
U3010556 5.0 VA 70/B 115 V 115 V 24.0 V 24.0 V 104.0 mA 104.0 mA 2x33.6 V
