External protection

T002

T002

External protection

20.0 VA - 40ºC/B

Logo CE

Acording regulations:

EN61558/6 UL1585/2

Simple primary(V):

230

Dual secondary(V):

2x( 6.0 / 10.0 / 12.0 / 15.0 / 18.0 / 22.0 / 24.0 / 30.0 )

Vo/Vn:

1.2 (Vo-no load voltage, Vn-load voltage)

 T002

Weight/unit:

370 gr

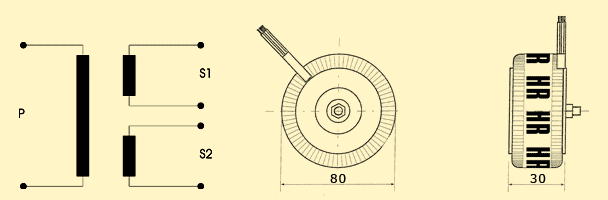

> Dual secondary

Dual secondary

T002
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
T002206 20.0 VA 40/B 230 V - 6.0 V 6.0 V 1667.0 mA 1667.0 mA 2x7.2 V
T002210 20.0 VA 40/B 230 V - 10.0 V 10.0 V 1000.0 mA 1000.0 mA 2x12.0 V
T002212 20.0 VA 40/B 230 V - 12.0 V 12.0 V 833.0 mA 833.0 mA 2x14.4 V
T002215 20.0 VA 40/B 230 V - 15.0 V 15.0 V 667.0 mA 667.0 mA 2x18.0 V
T002218 20.0 VA 40/B 230 V - 18.0 V 18.0 V 556.0 mA 556.0 mA 2x21.6 V
T002222 20.0 VA 40/B 230 V - 22.0 V 22.0 V 455.0 mA 455.0 mA 2x26.4 V
T002224 20.0 VA 40/B 230 V - 24.0 V 24.0 V 417.0 mA 417.0 mA 2x28.8 V
T002230 20.0 VA 40/B 230 V - 30.0 V 30.0 V 333.0 mA 333.0 mA 2x36.0 V
