External protection

T005

T005

External protection

50.0 VA - 40ºC/B

Logo CE

Acording regulations:

EN61558/6 UL1585/2

Simple primary(V):

230

Dual secondary(V):

2x( 6.0 / 10.0 / 12.0 / 15.0 / 18.0 / 22.0 / 24.0 / 30.0 )

Vo/Vn:

1.15 (Vo-no load voltage, Vn-load voltage)

 T005

Weight/unit:

670 gr

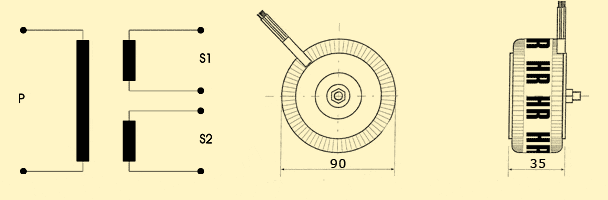

> Dual secondary

Dual secondary

T005
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
T005206 50.0 VA 40/B 230 V - 6.0 V 6.0 V 4167.0 mA 4167.0 mA 2x6.9 V
T005210 50.0 VA 40/B 230 V - 10.0 V 10.0 V 2500.0 mA 2500.0 mA 2x11.5 V
T005212 50.0 VA 40/B 230 V - 12.0 V 12.0 V 2083.0 mA 2083.0 mA 2x13.8 V
T005215 50.0 VA 40/B 230 V - 15.0 V 15.0 V 1667.0 mA 1667.0 mA 2x17.25 V
T005218 50.0 VA 40/B 230 V - 18.0 V 18.0 V 1389.0 mA 1389.0 mA 2x20.7 V
T005222 50.0 VA 40/B 230 V - 22.0 V 22.0 V 1136.0 mA 1136.0 mA 2x25.3 V
T005224 50.0 VA 40/B 230 V - 24.0 V 24.0 V 1042.0 mA 1042.0 mA 2x27.6 V
T005230 50.0 VA 40/B 230 V - 30.0 V 30.0 V 833.0 mA 833.0 mA 2x34.5 V
