External protection

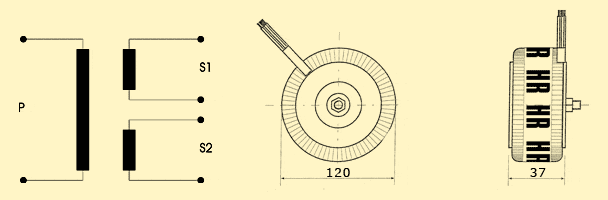

T016

T016

External protection

160.0 VA - 40ºC/B

Logo CE

Acording regulations:

EN61558/6 UL1585/2

Simple primary(V):

230

Dual secondary(V):

2x( 10.0 / 12.0 / 15.0 / 18.0 / 22.0 / 24.0 / 30.0 / 35.0 / 40.0 )

Vo/Vn:

1.1 (Vo-no load voltage, Vn-load voltage)

 T016

Weight/unit:

1680 gr

> Dual secondary

Dual secondary

T016
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
T016210 160.0 VA 40/B 230 V - 10.0 V 10.0 V 8000.0 mA 8000.0 mA 2x11.0 V
T016212 160.0 VA 40/B 230 V - 12.0 V 12.0 V 6667.0 mA 6667.0 mA 2x13.2 V
T016215 160.0 VA 40/B 230 V - 15.0 V 15.0 V 5333.0 mA 5333.0 mA 2x16.5 V
T016218 160.0 VA 40/B 230 V - 18.0 V 18.0 V 4444.0 mA 4444.0 mA 2x19.8 V
T016222 160.0 VA 40/B 230 V - 22.0 V 22.0 V 3636.0 mA 3636.0 mA 2x24.2 V
T016224 160.0 VA 40/B 230 V - 24.0 V 24.0 V 3333.0 mA 3333.0 mA 2x26.4 V
T016230 160.0 VA 40/B 230 V - 30.0 V 30.0 V 2667.0 mA 2667.0 mA 2x33.0 V
T016235 160.0 VA 40/B 230 V - 35.0 V 35.0 V 2286.0 mA 2286.0 mA 2x38.5 V
T016240 160.0 VA 40/B 230 V - 40.0 V 40.0 V 2000.0 mA 2000.0 mA 2x44.0 V
