External protection

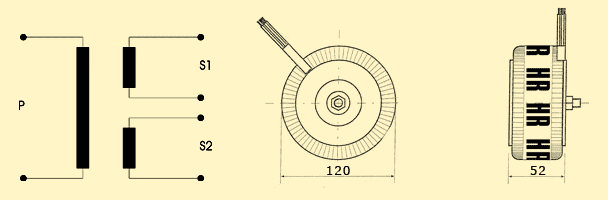

T020

T020

External protection

200.0 VA - 40ºC/B

Logo CE

Acording regulations:

EN61558/6 UL1585/2

Simple primary(V):

230

Dual secondary(V):

2x( 10.0 / 12.0 / 15.0 / 18.0 / 22.0 / 24.0 / 30.0 / 35.0 / 40.0 )

Vo/Vn:

1.09 (Vo-no load voltage, Vn-load voltage)

 T020

Weight/unit:

2150 gr

> Dual secondary

Dual secondary

T020
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
T020210 200.0 VA 40/B 230 V - 10.0 V 10.0 V 10000.0 mA 10000.0 mA 2x10.9 V
T020212 200.0 VA 40/B 230 V - 12.0 V 12.0 V 8333.0 mA 8333.0 mA 2x13.08 V
T020215 200.0 VA 40/B 230 V - 15.0 V 15.0 V 6667.0 mA 6667.0 mA 2x16.35 V
T020218 200.0 VA 40/B 230 V - 18.0 V 18.0 V 5556.0 mA 5556.0 mA 2x19.62 V
T020222 200.0 VA 40/B 230 V - 22.0 V 22.0 V 4545.0 mA 4545.0 mA 2x23.98 V
T020224 200.0 VA 40/B 230 V - 24.0 V 24.0 V 4167.0 mA 4167.0 mA 2x26.16 V
T020230 200.0 VA 40/B 230 V - 30.0 V 30.0 V 3333.0 mA 3333.0 mA 2x32.7 V
T020235 200.0 VA 40/B 230 V - 35.0 V 35.0 V 2857.0 mA 2857.0 mA 2x38.15 V
T020240 200.0 VA 40/B 230 V - 40.0 V 40.0 V 2500.0 mA 2500.0 mA 2x43.6 V
