External protection

T025

T025

External protection

250.0 VA - 40ºC/B

Logo CE

Acording regulations:

EN61558/6 UL1585/2

Simple primary(V):

230

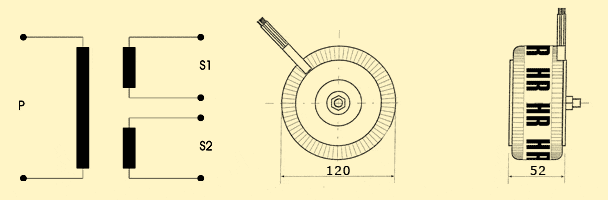

Dual secondary(V):

2x( 12.0 / 15.0 / 18.0 / 22.0 / 24.0 / 30.0 / 35.0 / 40.0 )

Vo/Vn:

1.09 (Vo-no load voltage, Vn-load voltage)

 T025

Weight/unit:

2430 gr

> Dual secondary

Dual secondary

T025
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
T025212 250.0 VA 40/B 230 V - 12.0 V 12.0 V 10417.0 mA 10417.0 mA 2x13.08 V
T025215 250.0 VA 40/B 230 V - 15.0 V 15.0 V 8333.0 mA 8333.0 mA 2x16.35 V
T025218 250.0 VA 40/B 230 V - 18.0 V 18.0 V 6944.0 mA 6944.0 mA 2x19.62 V
T025222 250.0 VA 40/B 230 V - 22.0 V 22.0 V 5682.0 mA 5682.0 mA 2x23.98 V
T025224 250.0 VA 40/B 230 V - 24.0 V 24.0 V 5208.0 mA 5208.0 mA 2x26.16 V
T025230 250.0 VA 40/B 230 V - 30.0 V 30.0 V 4167.0 mA 4167.0 mA 2x32.7 V
T025235 250.0 VA 40/B 230 V - 35.0 V 35.0 V 3571.0 mA 3571.0 mA 2x38.15 V
T025240 250.0 VA 40/B 230 V - 40.0 V 40.0 V 3125.0 mA 3125.0 mA 2x43.6 V
