External protection

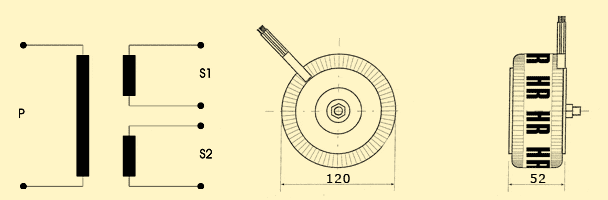

T033

T033

External protection

330.0 VA - 40ºC/B

Logo CE

Acording regulations:

EN61558/6 UL1585/2

Simple primary(V):

230

Dual secondary(V):

2x( 15.0 / 18.0 / 22.0 / 24.0 / 30.0 / 35.0 / 40.0 / 50.0 )

Vo/Vn:

1.07 (Vo-no load voltage, Vn-load voltage)

 T033

Weight/unit:

2950 gr

> Dual secondary

Dual secondary

T033
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
T033215 330.0 VA 40/B 230 V - 15.0 V 15.0 V 11000.0 mA 11000.0 mA 2x16.05 V
T033218 330.0 VA 40/B 230 V - 18.0 V 18.0 V 9167.0 mA 9167.0 mA 2x19.26 V
T033222 330.0 VA 40/B 230 V - 22.0 V 22.0 V 7500.0 mA 7500.0 mA 2x23.54 V
T033224 330.0 VA 40/B 230 V - 24.0 V 24.0 V 6875.0 mA 6875.0 mA 2x25.68 V
T033230 330.0 VA 40/B 230 V - 30.0 V 30.0 V 5500.0 mA 5500.0 mA 2x32.1 V
T033235 330.0 VA 40/B 230 V - 35.0 V 35.0 V 4714.0 mA 4714.0 mA 2x37.45 V
T033240 330.0 VA 40/B 230 V - 40.0 V 40.0 V 4125.0 mA 4125.0 mA 2x42.8 V
T033250 330.0 VA 40/B 230 V - 50.0 V 50.0 V 3300.0 mA 3300.0 mA 2x53.5 V
