Products - Toroidal transformers    Products - HR equivalents

Types and features | Series index
External protection

T050

T050

External protection

500.0 VA - 40ºC/B

Logo CE

Acording regulations:

EN61558/6 UL1585/2

Simple primary(V):

230

Dual secondary(V):

2x( 15.0 / 18.0 / 22.0 / 24.0 / 30.0 / 35.0 / 40.0 / 50.0 / 55.0 )

Vo/Vn:

1.06 (Vo-no load voltage, Vn-load voltage)

 T050

Weight/unit:

4230 gr

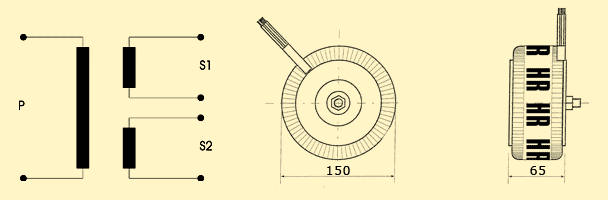

> Dual secondary

Dual secondary

T050
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
T050215 500.0 VA 40/B 230 V - 15.0 V 15.0 V 16667.0 mA 16667.0 mA 2x15.9 V
T050218 500.0 VA 40/B 230 V - 18.0 V 18.0 V 13889.0 mA 13889.0 mA 2x19.08 V
T050222 500.0 VA 40/B 230 V - 22.0 V 22.0 V 11364.0 mA 11364.0 mA 2x23.32 V
T050224 500.0 VA 40/B 230 V - 24.0 V 24.0 V 10417.0 mA 10417.0 mA 2x25.44 V
T050230 500.0 VA 40/B 230 V - 30.0 V 30.0 V 8333.0 mA 8333.0 mA 2x31.8 V
T050235 500.0 VA 40/B 230 V - 35.0 V 35.0 V 7143.0 mA 7143.0 mA 2x37.1 V
T050240 500.0 VA 40/B 230 V - 40.0 V 40.0 V 6250.0 mA 6250.0 mA 2x42.4 V
T050250 500.0 VA 40/B 230 V - 50.0 V 50.0 V 5000.0 mA 5000.0 mA 2x53.0 V
T050255 500.0 VA 40/B 230 V - 55.0 V 55.0 V 4545.0 mA 4545.0 mA 2x58.3 V
