External protection

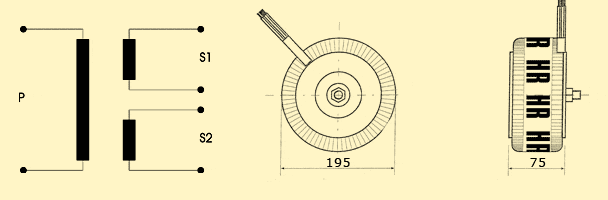

T150

T150

External protection

1500.0 VA - 40ºC/B

Logo CE

Acording regulations:

EN61558/6 UL1585/2

Simple primary(V):

230

Dual secondary(V):

2x( 30.0 / 35.0 / 40.0 / 50.0 / 55.0 / 60.0 / 80.0 )

Vo/Vn:

1.05 (Vo-no load voltage, Vn-load voltage)

 T150

Weight/unit:

10600 gr

> Dual secondary

Dual secondary

T150
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
T150230 1500.0 VA 40/B 230 V - 30.0 V 30.0 V 25000.0 mA 25000.0 mA 2x31.5 V
T150235 1500.0 VA 40/B 230 V - 35.0 V 35.0 V 21429.0 mA 21429.0 mA 2x36.75 V
T150240 1500.0 VA 40/B 230 V - 40.0 V 40.0 V 18750.0 mA 18750.0 mA 2x42.0 V
T150250 1500.0 VA 40/B 230 V - 50.0 V 50.0 V 15000.0 mA 15000.0 mA 2x52.5 V
T150255 1500.0 VA 40/B 230 V - 55.0 V 55.0 V 13636.0 mA 13636.0 mA 2x57.75 V
T150260 1500.0 VA 40/B 230 V - 60.0 V 60.0 V 12500.0 mA 12500.0 mA 2x63.0 V
T150280 1500.0 VA 40/B 230 V - 80.0 V 80.0 V 9375.0 mA 9375.0 mA 2x84.0 V
