External protection

C3814

EI 38/13,6

External protection

2.5 VA - 40ºC/B

Logo CE

Acording regulations:

EN61558/6 UL1585/2

Simple primary(V):

125 / 220

Simple secondary(V):

4.5 / 6.0 / 7.5 / 9.0 / 12.0 / 15.0 / 18.0 / 24.0

Dual secondary(V):

2x( 4.5 / 6.0 / 7.5 / 9.0 / 12.0 / 15.0 / 18.0 / 24.0 )

Vo/Vn:

1.4 (Vo-no load voltage, Vn-load voltage)

 C3814

Weight/unit:

130 gr

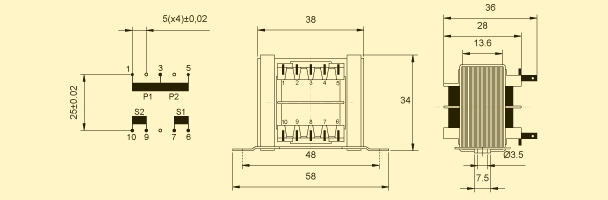

Dual secondary

C3814
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
C3814015 2.5 VA 40/B 125 V 220 V 4.5 V 4.5 V 278.0 mA 278.0 mA 2x6.3 V
C3814001 2.5 VA 40/B 125 V 220 V 6.0 V 6.0 V 208.0 mA 208.0 mA 2x8.4 V
C3814003 2.5 VA 40/B 125 V 220 V 7.5 V 7.5 V 167.0 mA 167.0 mA 2x10.5 V
C3814005 2.5 VA 40/B 125 V 220 V 9.0 V 9.0 V 139.0 mA 139.0 mA 2x12.6 V
C3814007 2.5 VA 40/B 125 V 220 V 12.0 V 12.0 V 104.0 mA 104.0 mA 2x16.8 V
C3814009 2.5 VA 40/B 125 V 220 V 15.0 V 15.0 V 83.0 mA 83.0 mA 2x21.0 V
C3814011 2.5 VA 40/B 125 V 220 V 18.0 V 18.0 V 69.0 mA 69.0 mA 2x25.2 V
C3814013 2.5 VA 40/B 125 V 220 V 24.0 V 24.0 V 52.0 mA 52.0 mA 2x33.6 V

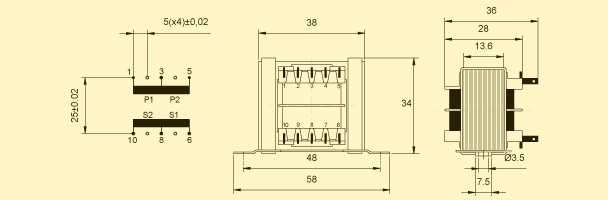

Center tapped secondary

C3814
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
C3814035 2.5 VA 40/B 125 V 220 V 4.5 V 4.5 V 278.0 mA 278.0 mA 2x6.3 V
C3814021 2.5 VA 40/B 125 V 220 V 6.0 V 6.0 V 208.0 mA 208.0 mA 2x8.4 V
C3814023 2.5 VA 40/B 125 V 220 V 7.5 V 7.5 V 167.0 mA 167.0 mA 2x10.5 V
C3814025 2.5 VA 40/B 125 V 220 V 9.0 V 9.0 V 139.0 mA 139.0 mA 2x12.6 V
C3814027 2.5 VA 40/B 125 V 220 V 12.0 V 12.0 V 104.0 mA 104.0 mA 2x16.8 V
C3814029 2.5 VA 40/B 125 V 220 V 15.0 V 15.0 V 83.0 mA 83.0 mA 2x21.0 V
C3814031 2.5 VA 40/B 125 V 220 V 18.0 V 18.0 V 69.0 mA 69.0 mA 2x25.2 V
C3814033 2.5 VA 40/B 125 V 220 V 24.0 V 24.0 V 52.0 mA 52.0 mA 2x33.6 V
