External protection

C4215

EI 42/14,8

External protection

4.0 VA - 40ºC/B

Logo CE

Acording regulations:

EN61558/6 UL1585/2

Simple primary(V):

125 / 220

Simple secondary(V):

4.5 / 6.0 / 7.5 / 9.0 / 12.0 / 15.0 / 18.0 / 24.0

Dual secondary(V):

2x( 4.5 / 6.0 / 7.5 / 9.0 / 12.0 / 15.0 / 18.0 / 24.0 )

Vo/Vn:

1.3 (Vo-no load voltage, Vn-load voltage)

 C4215

Weight/unit:

180 gr

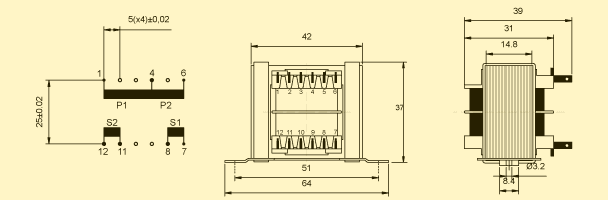

Dual secondary

C4215
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
C4215015 4.0 VA 40/B 125 V 220 V 4.5 V 4.5 V 444.0 mA 444.0 mA 2x5.85 V
C4215001 4.0 VA 40/B 125 V 220 V 6.0 V 6.0 V 333.0 mA 333.0 mA 2x7.8 V
C4215003 4.0 VA 40/B 125 V 220 V 7.5 V 7.5 V 267.0 mA 267.0 mA 2x9.75 V
C4215005 4.0 VA 40/B 125 V 220 V 9.0 V 9.0 V 222.0 mA 222.0 mA 2x11.7 V
C4215007 4.0 VA 40/B 125 V 220 V 12.0 V 12.0 V 167.0 mA 167.0 mA 2x15.6 V
C4215009 4.0 VA 40/B 125 V 220 V 15.0 V 15.0 V 133.0 mA 133.0 mA 2x19.5 V
C4215011 4.0 VA 40/B 125 V 220 V 18.0 V 18.0 V 111.0 mA 111.0 mA 2x23.4 V
C4215013 4.0 VA 40/B 125 V 220 V 24.0 V 24.0 V 83.0 mA 83.0 mA 2x31.2 V

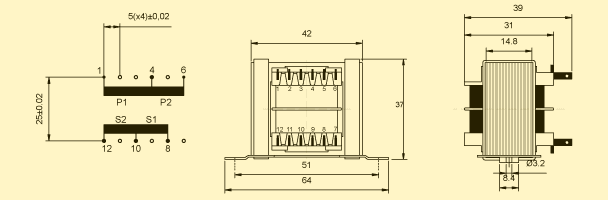

Center tapped secondary

C4215
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
C4215035 4.0 VA 40/B 125 V 220 V 4.5 V 4.5 V 444.0 mA 444.0 mA 2x5.85 V
C4215021 4.0 VA 40/B 125 V 220 V 6.0 V 6.0 V 333.0 mA 333.0 mA 2x7.8 V
C4215023 4.0 VA 40/B 125 V 220 V 7.5 V 7.5 V 267.0 mA 267.0 mA 2x9.75 V
C4215025 4.0 VA 40/B 125 V 220 V 9.0 V 9.0 V 222.0 mA 222.0 mA 2x11.7 V
C4215027 4.0 VA 40/B 125 V 220 V 12.0 V 12.0 V 167.0 mA 167.0 mA 2x15.6 V
C4215029 4.0 VA 40/B 125 V 220 V 15.0 V 15.0 V 133.0 mA 133.0 mA 2x19.5 V
C4215031 4.0 VA 40/B 125 V 220 V 18.0 V 18.0 V 111.0 mA 111.0 mA 2x23.4 V
C4215033 4.0 VA 40/B 125 V 220 V 24.0 V 24.0 V 83.0 mA 83.0 mA 2x31.2 V
