External protection

C5419

EI 54/18,8

External protection

12.0 VA - 40ºC/B

Logo CE

Acording regulations:

EN61558/6 UL1585/2

Simple primary(V):

125 / 220

Simple secondary(V):

4.5 / 6.0 / 7.5 / 9.0 / 12.0 / 15.0 / 18.0 / 24.0

Dual secondary(V):

2x( 4.5 / 6.0 / 7.5 / 9.0 / 12.0 / 15.0 / 18.0 / 24.0 )

Vo/Vn:

1.25 (Vo-no load voltage, Vn-load voltage)

 C5419

Weight/unit:

430 gr

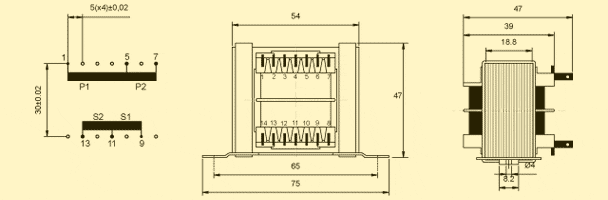

Dual secondary

C5419
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
C5419015 12.0 VA 40/B 125 V 220 V 4.5 V 4.5 V 1333.0 mA 1333.0 mA 2x5.625 V
C5419001 12.0 VA 40/B 125 V 220 V 6.0 V 6.0 V 1000.0 mA 1000.0 mA 2x7.5 V
C5419003 12.0 VA 40/B 125 V 220 V 7.5 V 7.5 V 800.0 mA 800.0 mA 2x9.375 V
C5419005 12.0 VA 40/B 125 V 220 V 9.0 V 9.0 V 667.0 mA 667.0 mA 2x11.25 V
C5419007 12.0 VA 40/B 125 V 220 V 12.0 V 12.0 V 500.0 mA 500.0 mA 2x15.0 V
C5419009 12.0 VA 40/B 125 V 220 V 15.0 V 15.0 V 400.0 mA 400.0 mA 2x18.75 V
C5419011 12.0 VA 40/B 125 V 220 V 18.0 V 18.0 V 333.0 mA 333.0 mA 2x22.5 V
C5419013 12.0 VA 40/B 125 V 220 V 24.0 V 24.0 V 250.0 mA 250.0 mA 2x30.0 V

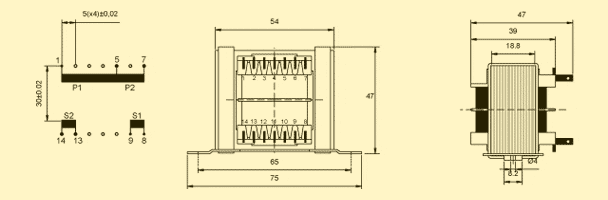

Center tapped secondary

C5419
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
C5419035 12.0 VA 40/B 125 V 220 V 4.5 V 4.5 V 1333.0 mA 1333.0 mA 2x5.625 V
C5419021 12.0 VA 40/B 125 V 220 V 6.0 V 6.0 V 1000.0 mA 1000.0 mA 2x7.5 V
C5419023 12.0 VA 40/B 125 V 220 V 7.5 V 7.5 V 800.0 mA 800.0 mA 2x9.375 V
C5419025 12.0 VA 40/B 125 V 220 V 9.0 V 9.0 V 667.0 mA 667.0 mA 2x11.25 V
C5419027 12.0 VA 40/B 125 V 220 V 12.0 V 12.0 V 500.0 mA 500.0 mA 2x15.0 V
C5419029 12.0 VA 40/B 125 V 220 V 15.0 V 15.0 V 400.0 mA 400.0 mA 2x18.75 V
C5419031 12.0 VA 40/B 125 V 220 V 18.0 V 18.0 V 333.0 mA 333.0 mA 2x22.5 V
C5419033 12.0 VA 40/B 125 V 220 V 24.0 V 24.0 V 250.0 mA 250.0 mA 2x30.0 V
