External protection

E3808

EI 38/7,5

External protection

2.1 VA - 40ºC/B

1.8 VA - 70ºC/B

Logo CE

Acording regulations:

EN61558 EN60590 EN60472 UL506 UL1585

Simple primary(V):

230 / 115

Dual secondary(V):

2x( 4.5 / 6.0 / 7.5 / 9.0 / 12.0 / 15.0 / 18.0 / 24.0 )

Center tapped secondary (V):

4.5 / 6.0 / 7.5 / 9.0 / 12.0 / 15.0 / 18.0 / 24.0

Vo/Vn:

1.4 (Vo-no load voltage, Vn-load voltage)

 E3808

Weight/unit:

100 gr

> Simple secondary

> Dual secondary

> Center tapped secondary

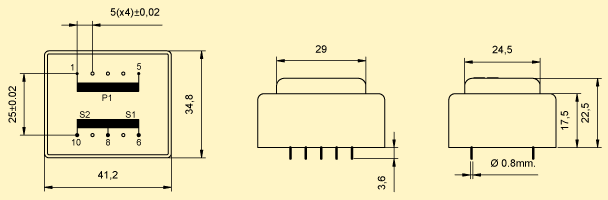

Simple secondary

E3808
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
E3808014 2.1 VA 40/B 230 V - 4.5 V - 467.0 mA - 6.3 V
E3808000 2.1 VA 40/B 230 V - 6.0 V - 350.0 mA - 8.4 V
E3808002 2.1 VA 40/B 230 V - 7.5 V - 280.0 mA - 10.5 V
E3808004 2.1 VA 40/B 230 V - 9.0 V - 233.0 mA - 12.6 V
E3808006 2.1 VA 40/B 230 V - 12.0 V - 175.0 mA - 16.8 V
E3808008 2.1 VA 40/B 230 V - 15.0 V - 140.0 mA - 21.0 V
E3808010 2.1 VA 40/B 230 V - 18.0 V - 117.0 mA - 25.2 V
E3808012 2.1 VA 40/B 230 V - 24.0 V - 88.0 mA - 33.6 V
E3808064 1.8 VA 70/B 230 V - 4.5 V - 400.0 mA - 6.3 V
E3808050 1.8 VA 70/B 230 V - 6.0 V - 300.0 mA - 8.4 V
E3808052 1.8 VA 70/B 230 V - 7.5 V - 240.0 mA - 10.5 V
E3808054 1.8 VA 70/B 230 V - 9.0 V - 200.0 mA - 12.6 V
E3808056 1.8 VA 70/B 230 V - 12.0 V - 150.0 mA - 16.8 V
E3808058 1.8 VA 70/B 230 V - 15.0 V - 120.0 mA - 21.0 V
E3808060 1.8 VA 70/B 230 V - 18.0 V - 100.0 mA - 25.2 V
E3808062 1.8 VA 70/B 230 V - 24.0 V - 75.0 mA - 33.6 V
E3808114 2.1 VA 40/B 115 V - 4.5 V - 467.0 mA - 6.3 V
E3808100 2.1 VA 40/B 115 V - 6.0 V - 350.0 mA - 8.4 V
E3808102 2.1 VA 40/B 115 V - 7.5 V - 280.0 mA - 10.5 V
E3808104 2.1 VA 40/B 115 V - 9.0 V - 233.0 mA - 12.6 V
E3808106 2.1 VA 40/B 115 V - 12.0 V - 175.0 mA - 16.8 V
E3808108 2.1 VA 40/B 115 V - 15.0 V - 140.0 mA - 21.0 V
E3808110 2.1 VA 40/B 115 V - 18.0 V - 117.0 mA - 25.2 V
E3808112 2.1 VA 40/B 115 V - 24.0 V - 88.0 mA - 33.6 V
E3808164 1.8 VA 70/B 115 V - 4.5 V - 400.0 mA - 6.3 V
E3808150 1.8 VA 70/B 115 V - 6.0 V - 300.0 mA - 8.4 V
E3808152 1.8 VA 70/B 115 V - 7.5 V - 240.0 mA - 10.5 V
E3808154 1.8 VA 70/B 115 V - 9.0 V - 200.0 mA - 12.6 V
E3808156 1.8 VA 70/B 115 V - 12.0 V - 150.0 mA - 16.8 V
E3808158 1.8 VA 70/B 115 V - 15.0 V - 120.0 mA - 21.0 V
E3808160 1.8 VA 70/B 115 V - 18.0 V - 100.0 mA - 25.2 V
E3808162 1.8 VA 70/B 115 V - 24.0 V - 75.0 mA - 33.6 V

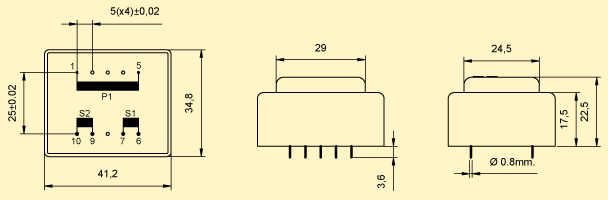

Dual secondary

E3808
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
E3808015 2.1 VA 40/B 230 V - 4.5 V 4.5 V 233.0 mA 233.0 mA 2x6.3 V
E3808001 2.1 VA 40/B 230 V - 6.0 V 6.0 V 175.0 mA 175.0 mA 2x8.4 V
E3808003 2.1 VA 40/B 230 V - 7.5 V 7.5 V 140.0 mA 140.0 mA 2x10.5 V
E3808005 2.1 VA 40/B 230 V - 9.0 V 9.0 V 117.0 mA 117.0 mA 2x12.6 V
E3808007 2.1 VA 40/B 230 V - 12.0 V 12.0 V 88.0 mA 88.0 mA 2x16.8 V
E3808009 2.1 VA 40/B 230 V - 15.0 V 15.0 V 70.0 mA 70.0 mA 2x21.0 V
E3808011 2.1 VA 40/B 230 V - 18.0 V 18.0 V 58.0 mA 58.0 mA 2x25.2 V
E3808013 2.1 VA 40/B 230 V - 24.0 V 24.0 V 44.0 mA 44.0 mA 2x33.6 V
E3808065 1.8 VA 70/B 230 V - 4.5 V 4.5 V 200.0 mA 200.0 mA 2x6.3 V
E3808051 1.8 VA 70/B 230 V - 6.0 V 6.0 V 150.0 mA 150.0 mA 2x8.4 V
E3808053 1.8 VA 70/B 230 V - 7.5 V 7.5 V 120.0 mA 120.0 mA 2x10.5 V
E3808055 1.8 VA 70/B 230 V - 9.0 V 9.0 V 100.0 mA 100.0 mA 2x12.6 V
E3808057 1.8 VA 70/B 230 V - 12.0 V 12.0 V 75.0 mA 75.0 mA 2x16.8 V
E3808059 1.8 VA 70/B 230 V - 15.0 V 15.0 V 60.0 mA 60.0 mA 2x21.0 V
E3808061 1.8 VA 70/B 230 V - 18.0 V 18.0 V 50.0 mA 50.0 mA 2x25.2 V
E3808063 1.8 VA 70/B 230 V - 24.0 V 24.0 V 38.0 mA 38.0 mA 2x33.6 V
E3808115 2.1 VA 40/B 115 V - 4.5 V 4.5 V 233.0 mA 233.0 mA 2x6.3 V
E3808101 2.1 VA 40/B 115 V - 6.0 V 6.0 V 175.0 mA 175.0 mA 2x8.4 V
E3808103 2.1 VA 40/B 115 V - 7.5 V 7.5 V 140.0 mA 140.0 mA 2x10.5 V
E3808105 2.1 VA 40/B 115 V - 9.0 V 9.0 V 117.0 mA 117.0 mA 2x12.6 V
E3808107 2.1 VA 40/B 115 V - 12.0 V 12.0 V 88.0 mA 88.0 mA 2x16.8 V
E3808109 2.1 VA 40/B 115 V - 15.0 V 15.0 V 70.0 mA 70.0 mA 2x21.0 V
E3808111 2.1 VA 40/B 115 V - 18.0 V 18.0 V 58.0 mA 58.0 mA 2x25.2 V
E3808113 2.1 VA 40/B 115 V - 24.0 V 24.0 V 44.0 mA 44.0 mA 2x33.6 V
E3808165 1.8 VA 70/B 115 V - 4.5 V 4.5 V 200.0 mA 200.0 mA 2x6.3 V
E3808151 1.8 VA 70/B 115 V - 6.0 V 6.0 V 150.0 mA 150.0 mA 2x8.4 V
E3808153 1.8 VA 70/B 115 V - 7.5 V 7.5 V 120.0 mA 120.0 mA 2x10.5 V
E3808155 1.8 VA 70/B 115 V - 9.0 V 9.0 V 100.0 mA 100.0 mA 2x12.6 V
E3808157 1.8 VA 70/B 115 V - 12.0 V 12.0 V 75.0 mA 75.0 mA 2x16.8 V
E3808159 1.8 VA 70/B 115 V - 15.0 V 15.0 V 60.0 mA 60.0 mA 2x21.0 V
E3808161 1.8 VA 70/B 115 V - 18.0 V 18.0 V 50.0 mA 50.0 mA 2x25.2 V
E3808163 1.8 VA 70/B 115 V - 24.0 V 24.0 V 38.0 mA 38.0 mA 2x33.6 V

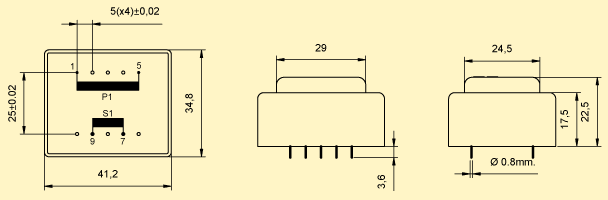

Center tapped secondary

E3808
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
{$st[i].ref} 2.1 VA 40/B 230 V - 4.5 V 4.5 V 233.0 mA 233.0 mA 2x6.3 V
{$st[i].ref} 2.1 VA 40/B 230 V - 6.0 V 6.0 V 175.0 mA 175.0 mA 2x8.4 V
{$st[i].ref} 2.1 VA 40/B 230 V - 7.5 V 7.5 V 140.0 mA 140.0 mA 2x10.5 V
{$st[i].ref} 2.1 VA 40/B 230 V - 9.0 V 9.0 V 117.0 mA 117.0 mA 2x12.6 V
{$st[i].ref} 2.1 VA 40/B 230 V - 12.0 V 12.0 V 88.0 mA 88.0 mA 2x16.8 V
{$st[i].ref} 2.1 VA 40/B 230 V - 15.0 V 15.0 V 70.0 mA 70.0 mA 2x21.0 V
{$st[i].ref} 2.1 VA 40/B 230 V - 18.0 V 18.0 V 58.0 mA 58.0 mA 2x25.2 V
{$st[i].ref} 2.1 VA 40/B 230 V - 24.0 V 24.0 V 44.0 mA 44.0 mA 2x33.6 V
{$st[i].ref} 1.8 VA 70/B 230 V - 4.5 V 4.5 V 200.0 mA 200.0 mA 2x6.3 V
{$st[i].ref} 1.8 VA 70/B 230 V - 6.0 V 6.0 V 150.0 mA 150.0 mA 2x8.4 V
{$st[i].ref} 1.8 VA 70/B 230 V - 7.5 V 7.5 V 120.0 mA 120.0 mA 2x10.5 V
{$st[i].ref} 1.8 VA 70/B 230 V - 9.0 V 9.0 V 100.0 mA 100.0 mA 2x12.6 V
{$st[i].ref} 1.8 VA 70/B 230 V - 12.0 V 12.0 V 75.0 mA 75.0 mA 2x16.8 V
{$st[i].ref} 1.8 VA 70/B 230 V - 15.0 V 15.0 V 60.0 mA 60.0 mA 2x21.0 V
{$st[i].ref} 1.8 VA 70/B 230 V - 18.0 V 18.0 V 50.0 mA 50.0 mA 2x25.2 V
{$st[i].ref} 1.8 VA 70/B 230 V - 24.0 V 24.0 V 38.0 mA 38.0 mA 2x33.6 V
{$st[i].ref} 2.1 VA 40/B 115 V - 4.5 V 4.5 V 233.0 mA 233.0 mA 2x6.3 V
{$st[i].ref} 2.1 VA 40/B 115 V - 6.0 V 6.0 V 175.0 mA 175.0 mA 2x8.4 V
{$st[i].ref} 2.1 VA 40/B 115 V - 7.5 V 7.5 V 140.0 mA 140.0 mA 2x10.5 V
{$st[i].ref} 2.1 VA 40/B 115 V - 9.0 V 9.0 V 117.0 mA 117.0 mA 2x12.6 V
{$st[i].ref} 2.1 VA 40/B 115 V - 12.0 V 12.0 V 88.0 mA 88.0 mA 2x16.8 V
{$st[i].ref} 2.1 VA 40/B 115 V - 15.0 V 15.0 V 70.0 mA 70.0 mA 2x21.0 V
{$st[i].ref} 2.1 VA 40/B 115 V - 18.0 V 18.0 V 58.0 mA 58.0 mA 2x25.2 V
{$st[i].ref} 2.1 VA 40/B 115 V - 24.0 V 24.0 V 44.0 mA 44.0 mA 2x33.6 V
{$st[i].ref} 1.8 VA 70/B 115 V - 4.5 V 4.5 V 200.0 mA 200.0 mA 2x6.3 V
{$st[i].ref} 1.8 VA 70/B 115 V - 6.0 V 6.0 V 150.0 mA 150.0 mA 2x8.4 V
{$st[i].ref} 1.8 VA 70/B 115 V - 7.5 V 7.5 V 120.0 mA 120.0 mA 2x10.5 V
{$st[i].ref} 1.8 VA 70/B 115 V - 9.0 V 9.0 V 100.0 mA 100.0 mA 2x12.6 V
{$st[i].ref} 1.8 VA 70/B 115 V - 12.0 V 12.0 V 75.0 mA 75.0 mA 2x16.8 V
{$st[i].ref} 1.8 VA 70/B 115 V - 15.0 V 15.0 V 60.0 mA 60.0 mA 2x21.0 V
{$st[i].ref} 1.8 VA 70/B 115 V - 18.0 V 18.0 V 50.0 mA 50.0 mA 2x25.2 V
{$st[i].ref} 1.8 VA 70/B 115 V - 24.0 V 24.0 V 38.0 mA 38.0 mA 2x33.6 V
