E4215

EI 42/14,8

External protection

6.0 VA - 40ºC/B

5.0 VA - 70ºC/B

Logo CE

Acording regulations:

EN61558 EN60590 EN60472 UL506 UL1585

Simple primary(V):

230 / 115

Dual secondary(V):

2x( 4.5 / 6.0 / 7.5 / 9.0 / 12.0 / 15.0 / 18.0 / 24.0 )

Center tapped secondary (V):

4.5 / 6.0 / 7.5 / 9.0 / 12.0 / 15.0 / 18.0 / 24.0

Vo/Vn:

1.3 (Vo-no load voltage, Vn-load voltage)

 E4215

Weight/unit:

200 gr

> Simple secondary

> Dual secondary

> Center tapped secondary

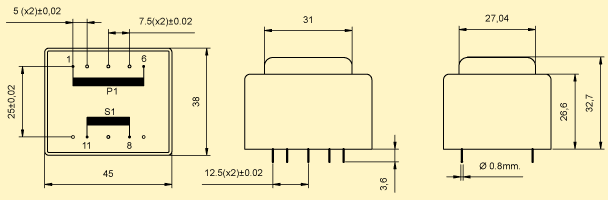

Simple secondary

E4215
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
E4215014 6.0 VA 40/B 230 V - 4.5 V - 1333.0 mA - 5.8 V
E4215000 6.0 VA 40/B 230 V - 6.0 V - 1000.0 mA - 7.8 V
E4215002 6.0 VA 40/B 230 V - 7.5 V - 800.0 mA - 9.7 V
E4215004 6.0 VA 40/B 230 V - 9.0 V - 667.0 mA - 11.7 V
E4215006 6.0 VA 40/B 230 V - 12.0 V - 500.0 mA - 15.6 V
E4215008 6.0 VA 40/B 230 V - 15.0 V - 400.0 mA - 19.5 V
E4215010 6.0 VA 40/B 230 V - 18.0 V - 333.0 mA - 23.4 V
E4215012 6.0 VA 40/B 230 V - 24.0 V - 250.0 mA - 31.2 V
E4215064 5.0 VA 70/B 230 V - 4.5 V - 1111.0 mA - 5.8 V
E4215050 5.0 VA 70/B 230 V - 6.0 V - 833.0 mA - 7.8 V
E4215052 5.0 VA 70/B 230 V - 7.5 V - 667.0 mA - 9.7 V
E4215054 5.0 VA 70/B 230 V - 9.0 V - 556.0 mA - 11.7 V
E4215056 5.0 VA 70/B 230 V - 12.0 V - 417.0 mA - 15.6 V
E4215058 5.0 VA 70/B 230 V - 15.0 V - 333.0 mA - 19.5 V
E4215060 5.0 VA 70/B 230 V - 18.0 V - 278.0 mA - 23.4 V
E4215062 5.0 VA 70/B 230 V - 24.0 V - 208.0 mA - 31.2 V
E4215114 6.0 VA 40/B 115 V - 4.5 V - 1333.0 mA - 5.8 V
E4215100 6.0 VA 40/B 115 V - 6.0 V - 1000.0 mA - 7.8 V
E4215102 6.0 VA 40/B 115 V - 7.5 V - 800.0 mA - 9.7 V
E4215104 6.0 VA 40/B 115 V - 9.0 V - 667.0 mA - 11.7 V
E4215106 6.0 VA 40/B 115 V - 12.0 V - 500.0 mA - 15.6 V
E4215108 6.0 VA 40/B 115 V - 15.0 V - 400.0 mA - 19.5 V
E4215110 6.0 VA 40/B 115 V - 18.0 V - 333.0 mA - 23.4 V
E4215112 6.0 VA 40/B 115 V - 24.0 V - 250.0 mA - 31.2 V
E4215164 5.0 VA 70/B 115 V - 4.5 V - 1111.0 mA - 5.8 V
E4215150 5.0 VA 70/B 115 V - 6.0 V - 833.0 mA - 7.8 V
E4215152 5.0 VA 70/B 115 V - 7.5 V - 667.0 mA - 9.7 V
E4215154 5.0 VA 70/B 115 V - 9.0 V - 556.0 mA - 11.7 V
E4215156 5.0 VA 70/B 115 V - 12.0 V - 417.0 mA - 15.6 V
E4215158 5.0 VA 70/B 115 V - 15.0 V - 333.0 mA - 19.5 V
E4215160 5.0 VA 70/B 115 V - 18.0 V - 278.0 mA - 23.4 V
E4215162 5.0 VA 70/B 115 V - 24.0 V - 208.0 mA - 31.2 V
E4215206 6.0 VA 40/B 230 V - 12.0 V - 500.0 mA - 15.6 V

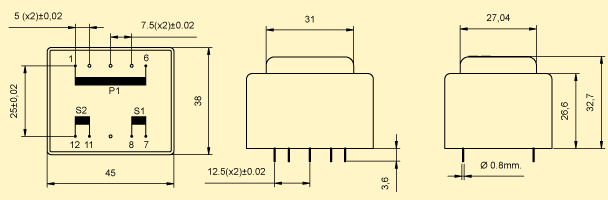

Dual secondary

E4215
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
E4215015 6.0 VA 40/B 230 V - 4.5 V 4.5 V 667.0 mA 667.0 mA 2x5.8 V
E4215001 6.0 VA 40/B 230 V - 6.0 V 6.0 V 500.0 mA 500.0 mA 2x7.8 V
E4215003 6.0 VA 40/B 230 V - 7.5 V 7.5 V 400.0 mA 400.0 mA 2x9.7 V
E4215005 6.0 VA 40/B 230 V - 9.0 V 9.0 V 333.0 mA 333.0 mA 2x11.7 V
E4215007 6.0 VA 40/B 230 V - 12.0 V 12.0 V 250.0 mA 250.0 mA 2x15.6 V
E4215009 6.0 VA 40/B 230 V - 15.0 V 15.0 V 200.0 mA 200.0 mA 2x19.5 V
E4215011 6.0 VA 40/B 230 V - 18.0 V 18.0 V 167.0 mA 167.0 mA 2x23.4 V
E4215013 6.0 VA 40/B 230 V - 24.0 V 24.0 V 125.0 mA 125.0 mA 2x31.2 V
E4215065 5.0 VA 70/B 230 V - 4.5 V 4.5 V 556.0 mA 556.0 mA 2x5.8 V
E4215051 5.0 VA 70/B 230 V - 6.0 V 6.0 V 417.0 mA 417.0 mA 2x7.8 V
E4215053 5.0 VA 70/B 230 V - 7.5 V 7.5 V 333.0 mA 333.0 mA 2x9.7 V
E4215055 5.0 VA 70/B 230 V - 9.0 V 9.0 V 278.0 mA 278.0 mA 2x11.7 V
E4215057 5.0 VA 70/B 230 V - 12.0 V 12.0 V 208.0 mA 208.0 mA 2x15.6 V
E4215059 5.0 VA 70/B 230 V - 15.0 V 15.0 V 167.0 mA 167.0 mA 2x19.5 V
E4215061 5.0 VA 70/B 230 V - 18.0 V 18.0 V 139.0 mA 139.0 mA 2x23.4 V
E4215063 5.0 VA 70/B 230 V - 24.0 V 24.0 V 104.0 mA 104.0 mA 2x31.2 V
E4215115 6.0 VA 40/B 115 V - 4.5 V 4.5 V 667.0 mA 667.0 mA 2x5.8 V
E4215101 6.0 VA 40/B 115 V - 6.0 V 6.0 V 500.0 mA 500.0 mA 2x7.8 V
E4215103 6.0 VA 40/B 115 V - 7.5 V 7.5 V 400.0 mA 400.0 mA 2x9.7 V
E4215105 6.0 VA 40/B 115 V - 9.0 V 9.0 V 333.0 mA 333.0 mA 2x11.7 V
E4215107 6.0 VA 40/B 115 V - 12.0 V 12.0 V 250.0 mA 250.0 mA 2x15.6 V
E4215109 6.0 VA 40/B 115 V - 15.0 V 15.0 V 200.0 mA 200.0 mA 2x19.5 V
E4215111 6.0 VA 40/B 115 V - 18.0 V 18.0 V 167.0 mA 167.0 mA 2x23.4 V
E4215113 6.0 VA 40/B 115 V - 24.0 V 24.0 V 125.0 mA 125.0 mA 2x31.2 V
E4215165 5.0 VA 70/B 115 V - 4.5 V 4.5 V 556.0 mA 556.0 mA 2x5.8 V
E4215151 5.0 VA 70/B 115 V - 6.0 V 6.0 V 417.0 mA 417.0 mA 2x7.8 V
E4215153 5.0 VA 70/B 115 V - 7.5 V 7.5 V 333.0 mA 333.0 mA 2x9.7 V
E4215155 5.0 VA 70/B 115 V - 9.0 V 9.0 V 278.0 mA 278.0 mA 2x11.7 V
E4215157 5.0 VA 70/B 115 V - 12.0 V 12.0 V 208.0 mA 208.0 mA 2x15.6 V
E4215159 5.0 VA 70/B 115 V - 15.0 V 15.0 V 167.0 mA 167.0 mA 2x19.5 V
E4215161 5.0 VA 70/B 115 V - 18.0 V 18.0 V 139.0 mA 139.0 mA 2x23.4 V
E4215163 5.0 VA 70/B 115 V - 24.0 V 24.0 V 104.0 mA 104.0 mA 2x31.2 V

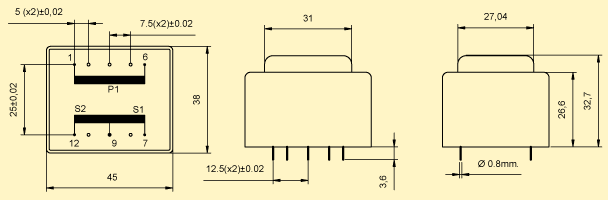

Center tapped secondary

E4215
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
{$st[i].ref} 6.0 VA 40/B 230 V - 4.5 V 4.5 V 667.0 mA 667.0 mA 2x5.8 V
{$st[i].ref} 6.0 VA 40/B 230 V - 6.0 V 6.0 V 500.0 mA 500.0 mA 2x7.8 V
{$st[i].ref} 6.0 VA 40/B 230 V - 7.5 V 7.5 V 400.0 mA 400.0 mA 2x9.7 V
{$st[i].ref} 6.0 VA 40/B 230 V - 9.0 V 9.0 V 333.0 mA 333.0 mA 2x11.7 V
{$st[i].ref} 6.0 VA 40/B 230 V - 12.0 V 12.0 V 250.0 mA 250.0 mA 2x15.6 V
{$st[i].ref} 6.0 VA 40/B 230 V - 15.0 V 15.0 V 200.0 mA 200.0 mA 2x19.5 V
{$st[i].ref} 6.0 VA 40/B 230 V - 18.0 V 18.0 V 167.0 mA 167.0 mA 2x23.4 V
{$st[i].ref} 6.0 VA 40/B 230 V - 24.0 V 24.0 V 125.0 mA 125.0 mA 2x31.2 V
{$st[i].ref} 5.0 VA 70/B 230 V - 4.5 V 4.5 V 556.0 mA 556.0 mA 2x5.8 V
{$st[i].ref} 5.0 VA 70/B 230 V - 6.0 V 6.0 V 417.0 mA 417.0 mA 2x7.8 V
{$st[i].ref} 5.0 VA 70/B 230 V - 7.5 V 7.5 V 333.0 mA 333.0 mA 2x9.7 V
{$st[i].ref} 5.0 VA 70/B 230 V - 9.0 V 9.0 V 278.0 mA 278.0 mA 2x11.7 V
{$st[i].ref} 6.0 VA 70/B 230 V - 12.0 V 12.0 V 208.0 mA 208.0 mA 2x15.6 V
{$st[i].ref} 5.0 VA 70/B 230 V - 15.0 V 15.0 V 167.0 mA 167.0 mA 2x19.5 V
{$st[i].ref} 5.0 VA 70/B 230 V - 18.0 V 18.0 V 139.0 mA 139.0 mA 2x23.4 V
{$st[i].ref} 5.0 VA 70/B 230 V - 24.0 V 24.0 V 104.0 mA 104.0 mA 2x31.2 V
{$st[i].ref} 6.0 VA 40/B 115 V - 4.5 V 4.5 V 667.0 mA 667.0 mA 2x5.8 V
{$st[i].ref} 6.0 VA 40/B 115 V - 6.0 V 6.0 V 500.0 mA 500.0 mA 2x7.8 V
{$st[i].ref} 6.0 VA 40/B 115 V - 7.5 V 7.5 V 400.0 mA 400.0 mA 2x9.7 V
{$st[i].ref} 6.0 VA 40/B 115 V - 9.0 V 9.0 V 333.0 mA 333.0 mA 2x11.7 V
{$st[i].ref} 6.0 VA 40/B 115 V - 12.0 V 12.0 V 250.0 mA 250.0 mA 2x15.6 V
{$st[i].ref} 6.0 VA 40/B 115 V - 15.0 V 15.0 V 200.0 mA 200.0 mA 2x19.5 V
{$st[i].ref} 6.0 VA 40/B 115 V - 18.0 V 18.0 V 167.0 mA 167.0 mA 2x23.4 V
{$st[i].ref} 6.0 VA 40/B 115 V - 24.0 V 24.0 V 125.0 mA 125.0 mA 2x31.2 V
{$st[i].ref} 5.0 VA 70/B 115 V - 4.5 V 4.5 V 556.0 mA 556.0 mA 2x5.8 V
{$st[i].ref} 5.0 VA 70/B 115 V - 6.0 V 6.0 V 417.0 mA 417.0 mA 2x7.8 V
{$st[i].ref} 5.0 VA 70/B 115 V - 7.5 V 7.5 V 333.0 mA 333.0 mA 2x9.7 V
{$st[i].ref} 5.0 VA 70/B 115 V - 9.0 V 9.0 V 278.0 mA 278.0 mA 2x11.7 V
{$st[i].ref} 6.0 VA 70/B 115 V - 12.0 V 12.0 V 208.0 mA 208.0 mA 2x15.6 V
{$st[i].ref} 5.0 VA 70/B 115 V - 15.0 V 15.0 V 167.0 mA 167.0 mA 2x19.5 V
{$st[i].ref} 5.0 VA 70/B 115 V - 18.0 V 18.0 V 139.0 mA 139.0 mA 2x23.4 V
{$st[i].ref} 5.0 VA 70/B 115 V - 24.0 V 24.0 V 104.0 mA 104.0 mA 2x31.2 V
{$st[i].ref} 6.0 VA 40/B 230 V - 12.0 V 12.0 V 250.0 mA 250.0 mA 2x15.6 V
