External protection

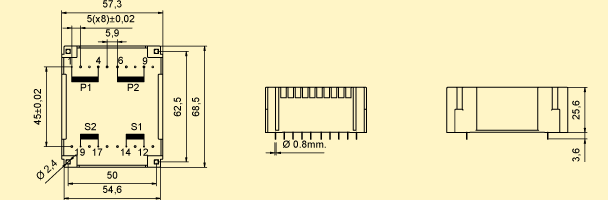

U3911

UI 39/10,2

External protection

14.0 VA - 40ºC/B

11.0 VA - 70ºC/B

Logo CE

Acording regulations:

EN61558 EN60590 EN60472 UL506 UL1585

Dual primary

2x( 115 )

Simple secondary(V):

Dual secondary(V):

2x( 4.5 / 6.0 / 7.5 / 9.0 / 12.0 / 15.0 / 18.0 / 24.0 )

Vo/Vn:

1.5 (Vo-no load voltage, Vn-load voltage)

 U3911

Weight/unit:

345 gr

> PRIM. (1 - 3 / 8 - 10) SEC. (12 - 14 / 17 - 19)

> PRIM. (1 - 4 / 6 - 9) SEC. (12 - 14 / 17 - 19)

PRIM. (1 - 3 / 8 - 10) SEC. (12 - 14 / 17 - 19)

HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
U3911007 14.0 VA 40/B 115 V 115 V 4.5 V 4.5 V 1556.0 mA 1556.0 mA 2x6.7 V
U3911000 14.0 VA 40/B 115 V 115 V 6.0 V 6.0 V 1167.0 mA 1167.0 mA 2x9.0 V
U3911001 14.0 VA 40/B 115 V 115 V 7.5 V 7.5 V 933.0 mA 933.0 mA 2x11.2 V
U3911002 14.0 VA 40/B 115 V 115 V 9.0 V 9.0 V 778.0 mA 778.0 mA 2x13.5 V
U3911003 14.0 VA 40/B 115 V 115 V 12.0 V 12.0 V 583.0 mA 583.0 mA 2x18.0 V
U3911004 14.0 VA 40/B 115 V 115 V 15.0 V 15.0 V 467.0 mA 467.0 mA 2x22.5 V
U3911005 14.0 VA 40/B 115 V 115 V 18.0 V 18.0 V 389.0 mA 389.0 mA 2x27.0 V
U3911006 14.0 VA 40/B 115 V 115 V 24.0 V 24.0 V 292.0 mA 292.0 mA 2x36.0 V
U3911507 14.0 VA 40/B 115 V 115 V 4.5 V 4.5 V 1556.0 mA 1556.0 mA 2x6.7 V
U3911500 14.0 VA 40/B 115 V 115 V 6.0 V 6.0 V 1167.0 mA 1167.0 mA 2x9.0 V
U3911501 14.0 VA 40/B 115 V 115 V 7.5 V 7.5 V 933.0 mA 933.0 mA 2x11.2 V
U3911502 14.0 VA 40/B 115 V 115 V 9.0 V 9.0 V 778.0 mA 778.0 mA 2x13.5 V
U3911503 14.0 VA 40/B 115 V 115 V 12.0 V 12.0 V 583.0 mA 583.0 mA 2x18.0 V
U3911504 14.0 VA 40/B 115 V 115 V 15.0 V 15.0 V 467.0 mA 467.0 mA 2x22.5 V
U3911505 14.0 VA 40/B 115 V 115 V 18.0 V 18.0 V 389.0 mA 389.0 mA 2x27.0 V
U3911506 14.0 VA 40/B 115 V 115 V 24.0 V 24.0 V 292.0 mA 292.0 mA 2x36.0 V

PRIM. (1 - 4 / 6 - 9) SEC. (12 - 14 / 17 - 19)

U3911
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
U3911507 14.0 VA 40/B 115 V 115 V 4.5 V 4.5 V 1556.0 mA 1556.0 mA 2x6.7 V
U3911500 14.0 VA 40/B 115 V 115 V 6.0 V 6.0 V 1167.0 mA 1167.0 mA 2x9.0 V
U3911501 14.0 VA 40/B 115 V 115 V 7.5 V 7.5 V 933.0 mA 933.0 mA 2x11.2 V
U3911502 14.0 VA 40/B 115 V 115 V 9.0 V 9.0 V 778.0 mA 778.0 mA 2x13.5 V
U3911503 14.0 VA 40/B 115 V 115 V 12.0 V 12.0 V 583.0 mA 583.0 mA 2x18.0 V
U3911504 14.0 VA 40/B 115 V 115 V 15.0 V 15.0 V 467.0 mA 467.0 mA 2x22.5 V
U3911505 14.0 VA 40/B 115 V 115 V 18.0 V 18.0 V 389.0 mA 389.0 mA 2x27.0 V
U3911506 14.0 VA 40/B 115 V 115 V 24.0 V 24.0 V 292.0 mA 292.0 mA 2x36.0 V
U3911557 11.0 VA 70/B 115 V 115 V 4.5 V 4.5 V 1222.0 mA 1222.0 mA 2x6.7 V
U3911550 11.0 VA 70/B 115 V 115 V 6.0 V 6.0 V 917.0 mA 917.0 mA 2x9.0 V
U3911551 11.0 VA 70/B 115 V 115 V 7.5 V 7.5 V 733.0 mA 733.0 mA 2x11.2 V
U3911552 11.0 VA 70/B 115 V 115 V 9.0 V 9.0 V 611.0 mA 611.0 mA 2x13.5 V
U3911553 11.0 VA 70/B 115 V 115 V 12.0 V 12.0 V 458.0 mA 458.0 mA 2x18.0 V
U3911554 11.0 VA 70/B 115 V 115 V 15.0 V 15.0 V 367.0 mA 367.0 mA 2x22.5 V
U3911555 11.0 VA 70/B 115 V 115 V 18.0 V 18.0 V 306.0 mA 306.0 mA 2x27.0 V
U3911556 11.0 VA 70/B 115 V 115 V 24.0 V 24.0 V 229.0 mA 229.0 mA 2x36.0 V
