External protection

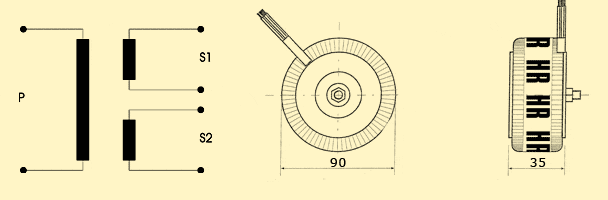

T006

T006

External protection

60.0 VA - 40ºC/B

Logo CE

Acording regulations:

EN61558/6 UL1585/2

Simple primary(V):

230

Dual secondary(V):

2x( 6.0 / 10.0 / 12.0 / 15.0 / 18.0 / 22.0 / 24.0 / 30.0 / 35.0 )

Vo/Vn:

1.15 (Vo-no load voltage, Vn-load voltage)

 T006

Weight/unit:

750 gr

> Dual secondary

Dual secondary

T006
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
T006206 60.0 VA 40/B 230 V - 6.0 V 6.0 V 5000.0 mA 5000.0 mA 2x6.9 V
T006210 60.0 VA 40/B 230 V - 10.0 V 10.0 V 3000.0 mA 3000.0 mA 2x11.5 V
T006212 60.0 VA 40/B 230 V - 12.0 V 12.0 V 2500.0 mA 2500.0 mA 2x13.8 V
T006215 60.0 VA 40/B 230 V - 15.0 V 15.0 V 2000.0 mA 2000.0 mA 2x17.25 V
T006218 60.0 VA 40/B 230 V - 18.0 V 18.0 V 1667.0 mA 1667.0 mA 2x20.7 V
T006222 60.0 VA 40/B 230 V - 22.0 V 22.0 V 1364.0 mA 1364.0 mA 2x25.3 V
T006224 60.0 VA 40/B 230 V - 24.0 V 24.0 V 1250.0 mA 1250.0 mA 2x27.6 V
T006230 60.0 VA 40/B 230 V - 30.0 V 30.0 V 1000.0 mA 1000.0 mA 2x34.5 V
T006235 60.0 VA 40/B 230 V - 35.0 V 35.0 V 857.0 mA 857.0 mA 2x40.25 V
