External protection

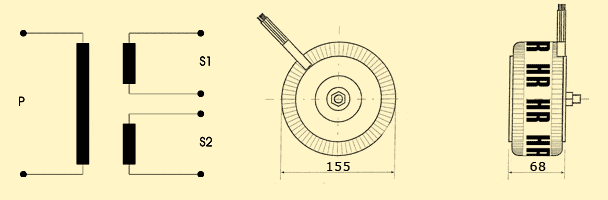

T075

T075

External protection

750.0 VA - 40ºC/B

Logo CE

Acording regulations:

EN61558/6 UL1585/2

Simple primary(V):

230

Dual secondary(V):

2x( 24.0 / 30.0 / 35.0 / 40.0 / 50.0 / 55.0 / 60.0 )

Vo/Vn:

1.05 (Vo-no load voltage, Vn-load voltage)

 T075

Weight/unit:

5750 gr

> Dual secondary

Dual secondary

T075
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
T075224 750.0 VA 40/B 230 V - 24.0 V 24.0 V 15625.0 mA 15625.0 mA 2x25.2 V
T075230 750.0 VA 40/B 230 V - 30.0 V 30.0 V 12500.0 mA 12500.0 mA 2x31.5 V
T075235 750.0 VA 40/B 230 V - 35.0 V 35.0 V 10714.0 mA 10714.0 mA 2x36.75 V
T075240 750.0 VA 40/B 230 V - 40.0 V 40.0 V 9375.0 mA 9375.0 mA 2x42.0 V
T075250 750.0 VA 40/B 230 V - 50.0 V 50.0 V 7500.0 mA 7500.0 mA 2x52.5 V
T075255 750.0 VA 40/B 230 V - 55.0 V 55.0 V 6818.0 mA 6818.0 mA 2x57.75 V
T075260 750.0 VA 40/B 230 V - 60.0 V 60.0 V 6250.0 mA 6250.0 mA 2x63.0 V
