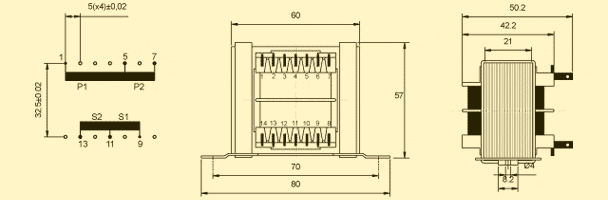

C6021

EI 60/21

External protection

18.0 VA - 40ºC/B

Logo CE

Acording regulations:

EN61558/6 UL1585/2

Simple primary(V):

125 / 220

Simple secondary(V):

4.5 / 6.0 / 7.5 / 9.0 / 12.0 / 15.0 / 18.0 / 24.0

Dual secondary(V):

2x( 4.5 / 6.0 / 7.5 / 9.0 / 12.0 / 15.0 / 18.0 / 24.0 )

Vo/Vn:

1.2 (Vo-no load voltage, Vn-load voltage)

 C6021

Weight/unit:

515 gr

Dual secondary

C6021
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
C6021015 18.0 VA 40/B 125 V 220 V 4.5 V 4.5 V 2000.0 mA 2000.0 mA 2x5.4 V
C6021001 18.0 VA 40/B 125 V 220 V 6.0 V 6.0 V 1500.0 mA 1500.0 mA 2x7.2 V
C6021003 18.0 VA 40/B 125 V 220 V 7.5 V 7.5 V 1200.0 mA 1200.0 mA 2x9.0 V
C6021005 18.0 VA 40/B 125 V 220 V 9.0 V 9.0 V 1000.0 mA 1000.0 mA 2x10.8 V
C6021007 18.0 VA 40/B 125 V 220 V 12.0 V 12.0 V 750.0 mA 750.0 mA 2x14.4 V
C6021009 18.0 VA 40/B 125 V 220 V 15.0 V 15.0 V 600.0 mA 600.0 mA 2x18.0 V
C6021011 18.0 VA 40/B 125 V 220 V 18.0 V 18.0 V 500.0 mA 500.0 mA 2x21.6 V
C6021013 18.0 VA 40/B 125 V 220 V 24.0 V 24.0 V 375.0 mA 375.0 mA 2x28.8 V

Center tapped secondary

C6021
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
C6021035 18.0 VA 40/B 125 V 220 V 4.5 V 4.5 V 2000.0 mA 2000.0 mA 2x5.4 V
C6021021 18.0 VA 40/B 125 V 220 V 6.0 V 6.0 V 1500.0 mA 1500.0 mA 2x7.2 V
C6021023 18.0 VA 40/B 125 V 220 V 7.5 V 7.5 V 1200.0 mA 1200.0 mA 2x9.0 V
C6021025 18.0 VA 40/B 125 V 220 V 9.0 V 9.0 V 1000.0 mA 1000.0 mA 2x10.8 V
C6021027 18.0 VA 40/B 125 V 220 V 12.0 V 12.0 V 750.0 mA 750.0 mA 2x14.4 V
C6021029 18.0 VA 40/B 125 V 220 V 15.0 V 15.0 V 600.0 mA 600.0 mA 2x18.0 V
C6021031 18.0 VA 40/B 125 V 220 V 18.0 V 18.0 V 500.0 mA 500.0 mA 2x21.6 V
C6021033 18.0 VA 40/B 125 V 220 V 24.0 V 24.0 V 375.0 mA 375.0 mA 2x28.8 V
