Short-circuit proof

U3006

UI 30/5,5

Short-circuit proof

3.0 VA - 40ºC/B

2.4 VA - 70ºC/B

Logo CE

Acording regulations:

EN61558 EN60590 EN60472 UL506 UL1585

Dual primary

2x( 115 )

Simple secondary(V):

Dual secondary(V):

2x( 4.5 / 6.0 / 7.5 / 9.0 / 12.0 / 15.0 / 18.0 / 24.0 )

Vo/Vn:

1.7 (Vo-no load voltage, Vn-load voltage)

 U3006

Weight/unit:

130 gr

> PRIM. (1 - 3 / 6 - 8) SEC. (10 - 12 / 13 - 15)

> PRIM. (1 - 3 / 5 - 7) SEC. (10 - 12 / 14 - 16)

PRIM. (1 - 3 / 6 - 8) SEC. (10 - 12 / 13 - 15)

HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
U3006007 3.0 VA 40/B 115 V 115 V 4.5 V 4.5 V 333.0 mA 333.0 mA 2x7.6 V
U3006000 3.0 VA 40/B 115 V 115 V 6.0 V 6.0 V 250.0 mA 250.0 mA 2x10.2 V
U3006001 3.0 VA 40/B 115 V 115 V 7.5 V 7.5 V 200.0 mA 200.0 mA 2x12.7 V
U3006002 3.0 VA 40/B 115 V 115 V 9.0 V 9.0 V 167.0 mA 167.0 mA 2x15.3 V
U3006003 3.0 VA 40/B 115 V 115 V 12.0 V 12.0 V 125.0 mA 125.0 mA 2x20.4 V
U3006004 3.0 VA 40/B 115 V 115 V 15.0 V 15.0 V 100.0 mA 100.0 mA 2x25.5 V
U3006005 3.0 VA 40/B 115 V 115 V 18.0 V 18.0 V 83.0 mA 83.0 mA 2x30.6 V
U3006006 3.0 VA 40/B 115 V 115 V 24.0 V 24.0 V 62.0 mA 62.0 mA 2x40.8 V
U3006507 3.0 VA 40/B 115 V 115 V 4.5 V 4.5 V 333.0 mA 333.0 mA 2x7.6 V
U3006500 3.0 VA 40/B 115 V 115 V 6.0 V 6.0 V 250.0 mA 250.0 mA 2x10.2 V
U3006501 3.0 VA 40/B 115 V 115 V 7.5 V 7.5 V 200.0 mA 200.0 mA 2x12.7 V
U3006502 3.0 VA 40/B 115 V 115 V 9.0 V 9.0 V 167.0 mA 167.0 mA 2x15.3 V
U3006503 3.0 VA 40/B 115 V 115 V 12.0 V 12.0 V 125.0 mA 125.0 mA 2x20.4 V
U3006504 3.0 VA 40/B 115 V 115 V 15.0 V 15.0 V 100.0 mA 100.0 mA 2x25.5 V
U3006505 3.0 VA 40/B 115 V 115 V 18.0 V 18.0 V 83.0 mA 83.0 mA 2x30.6 V
U3006506 3.0 VA 40/B 115 V 115 V 24.0 V 24.0 V 62.0 mA 62.0 mA 2x40.8 V

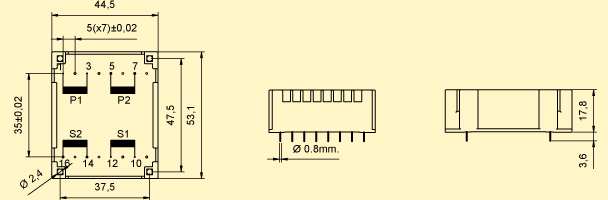

PRIM. (1 - 3 / 5 - 7) SEC. (10 - 12 / 14 - 16)

U3006
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
U3006507 3.0 VA 40/B 115 V 115 V 4.5 V 4.5 V 333.0 mA 333.0 mA 2x7.6 V
U3006500 3.0 VA 40/B 115 V 115 V 6.0 V 6.0 V 250.0 mA 250.0 mA 2x10.2 V
U3006501 3.0 VA 40/B 115 V 115 V 7.5 V 7.5 V 200.0 mA 200.0 mA 2x12.7 V
U3006502 3.0 VA 40/B 115 V 115 V 9.0 V 9.0 V 167.0 mA 167.0 mA 2x15.3 V
U3006503 3.0 VA 40/B 115 V 115 V 12.0 V 12.0 V 125.0 mA 125.0 mA 2x20.4 V
U3006504 3.0 VA 40/B 115 V 115 V 15.0 V 15.0 V 100.0 mA 100.0 mA 2x25.5 V
U3006505 3.0 VA 40/B 115 V 115 V 18.0 V 18.0 V 83.0 mA 83.0 mA 2x30.6 V
U3006506 3.0 VA 40/B 115 V 115 V 24.0 V 24.0 V 62.0 mA 62.0 mA 2x40.8 V
U3006557 2.4 VA 70/B 115 V 115 V 4.5 V 4.5 V 267.0 mA 267.0 mA 2x7.6 V
U3006550 2.4 VA 70/B 115 V 115 V 6.0 V 6.0 V 200.0 mA 200.0 mA 2x10.2 V
U3006551 2.4 VA 70/B 115 V 115 V 7.5 V 7.5 V 160.0 mA 160.0 mA 2x12.7 V
U3006552 2.4 VA 70/B 115 V 115 V 9.0 V 9.0 V 133.0 mA 133.0 mA 2x15.3 V
U3006553 2.4 VA 70/B 115 V 115 V 12.0 V 12.0 V 100.0 mA 100.0 mA 2x20.4 V
U3006554 2.4 VA 70/B 115 V 115 V 15.0 V 15.0 V 80.0 mA 80.0 mA 2x25.5 V
U3006555 2.4 VA 70/B 115 V 115 V 18.0 V 18.0 V 67.0 mA 67.0 mA 2x30.6 V
U3006556 2.4 VA 70/B 115 V 115 V 24.0 V 24.0 V 50.0 mA 50.0 mA 2x40.8 V
