External protection

T012

T012

External protection

120.0 VA - 40ºC/B

Logo CE

Acording regulations:

EN61558/6 UL1585/2

Simple primary(V):

230

Dual secondary(V):

2x( 6.0 / 10.0 / 12.0 / 15.0 / 18.0 / 22.0 / 24.0 / 30.0 / 35.0 / 40.0 )

Vo/Vn:

1.1 (Vo-no load voltage, Vn-load voltage)

 T012

Weight/unit:

1370 gr

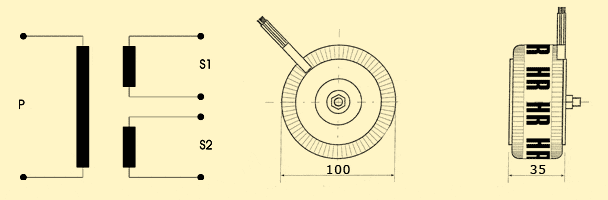

> Dual secondary

Dual secondary

T012
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
T012206 120.0 VA 40/B 230 V - 6.0 V 6.0 V 10000.0 mA 10000.0 mA 2x6.6 V
T012210 120.0 VA 40/B 230 V - 10.0 V 10.0 V 6000.0 mA 6000.0 mA 2x11.0 V
T012212 120.0 VA 40/B 230 V - 12.0 V 12.0 V 5000.0 mA 5000.0 mA 2x13.2 V
T012215 120.0 VA 40/B 230 V - 15.0 V 15.0 V 4000.0 mA 4000.0 mA 2x16.5 V
T012218 120.0 VA 40/B 230 V - 18.0 V 18.0 V 3333.0 mA 3333.0 mA 2x19.8 V
T012222 120.0 VA 40/B 230 V - 22.0 V 22.0 V 2727.0 mA 2727.0 mA 2x24.2 V
T012224 120.0 VA 40/B 230 V - 24.0 V 24.0 V 2500.0 mA 2500.0 mA 2x26.4 V
T012230 120.0 VA 40/B 230 V - 30.0 V 30.0 V 2000.0 mA 2000.0 mA 2x33.0 V
T012235 120.0 VA 40/B 230 V - 35.0 V 35.0 V 1714.0 mA 1714.0 mA 2x38.5 V
T012240 120.0 VA 40/B 230 V - 40.0 V 40.0 V 1500.0 mA 1500.0 mA 2x44.0 V
